Overview:

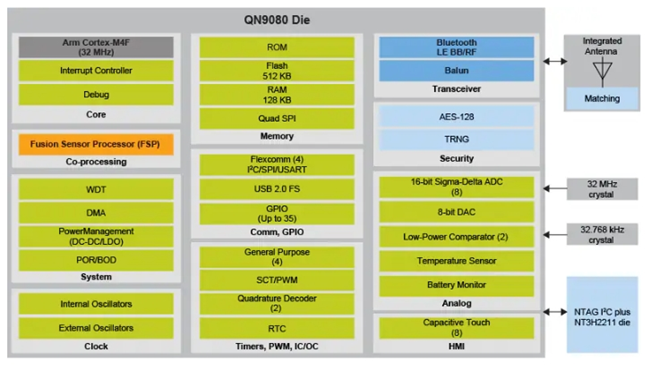

NXP QN9080-001-M17 Bluetooth® module is a fully certified module that supports Bluetooth Low Power (BLE) and NFC. The Bluetooth module features a rich feature set of ultra-low power consumption, highly integrated, and is fully FCC/CE/IC/MIC certified.

The module is based on a QN9080 Bluetooth MCU with an Arm® Cortex®-M4F core and integrates a dedicated fusion Sensor Coprocessor (FSP). With 512 KB of onboard flash memory and 128 KB of SRAM, it provides plenty of space and flexibility to support complex applications and connection protocol stacks.

It also integrates NFC NTAG, 32 MHz and 32 kHz crystals, RF matching, and 2.4 GHz antennas to provide a complete, ready-to-use solution for applications requiring low energy Bluetooth wireless connectivity and simple pairing with NFC NTAG.

Device: QN9080-001-M17Y

Type: Fully authenticated module that supports Bluetooth and NFC

Package: LFLGA54

Features:

BLE radio function

Receiving sensitivity: 92.7 dB.

Transmit output power: -20 dBm to +2 dBm.

The LE 2M PHY supports Bluetooth 5 and can support up to 16 concurrent links.

NTAG characteristic

Comply with ISO/IEC 14443 Parts 2 and 3

The NTAG I2C + development board has passed the NFC Forum Type 2 Tag certification

(Authentication ID: 58514)

Kernel and memory

32 MHz Cortex - M4F core, 512KB flash memory, 128 KB SRAM

32 MHz Fusion Sensor Processor (FSP)

512 KB flash memory, 128 KB RAM

Low power consumption, operating voltage range

The transmitting current is 3.5mA at 0dBm transmitting power

4.0mA receiving current

Operating voltage: 1.67 to 3.6V

Digital and analog peripherals

2 UART/SPI/I2C, 1 full speed USB 2.0

8-channel 16-bit Σ△ADC, 8-bit DAC with 1Msps, 2 ultra-low power comparators

4 universal timers, SCT/PWM

8 channel capacitive touch pad

Quad-SPI for XIP

Temperature sensor

Easy to design

Built-in 32 MHz and 32.768 kHz crystals

Integrated 2.4 GHz antenna

It has passed FCC/CE/IC/MIC certification.

Applications

Wearable product

wristband

Industrial control

Health and medical equipment

Home and building automation

Vital signs monitor

Diabetes care
