IGBT Modules SNXH160T120L2Q1PG Trench Field Cut-off Triple Inverter 1200 V 140 A 280 W

IGBT Modules SNXH160T120L2Q1PG Trench Field Cut-off Triple Inverter 1200 V 140 A 280 W

Source:our siteTime:2024-03-27Views:

Shenzhen Mingjiada Electronics Co.,Ltd.Supply IGBT Module SNXH160T120L2Q1PG Trench Type Field Cutoff Three-Stage Inverter 1200 V 140 A 280 W Chassis MountingManufacturer：onsemiProduct Model:SNXH160T120L2Q1PGYear: 24+Description: 160A 1200V PIM Q1PACK…

Shenzhen Mingjiada Electronics Co.,Ltd.Supply IGBT Module SNXH160T120L2Q1PG Trench Type Field Cutoff Three-Stage Inverter 1200 V 140 A 280 W Chassis Mounting


Manufacturer：onsemi

Product Model:SNXH160T120L2Q1PG

Year: 24+

Description: 160A 1200V PIM Q1PACK


FEATURES

Very efficient trench and field stop technology

Low switching losses to reduce system power consumption Module design provides high power density

Low inductance layout

Q1PACK package with press fit and solder pins

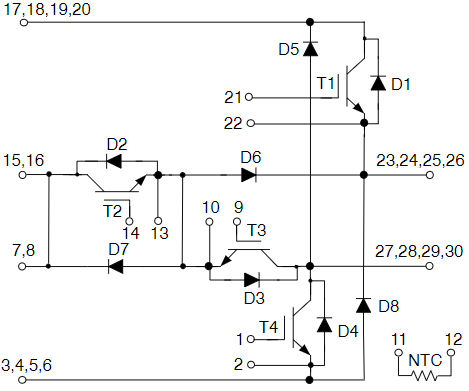

Schematic

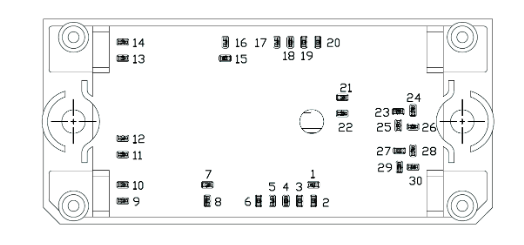

Pin Assignment

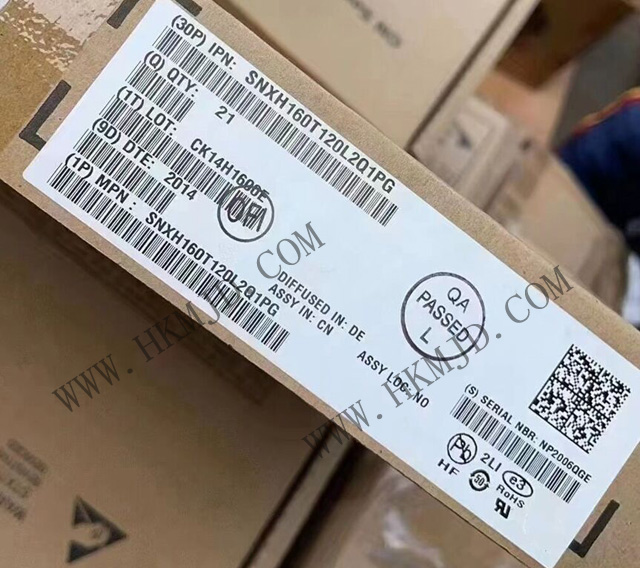

Product Picture



If you are interested, please feel free to contact Mr Chen by phone:

Tel：+86 13410018555

Email：sales@hkmjd.com

Company Home：www.hkmjd.com
