The AD5755-1ACPZ is a four-channel, 16-bit digital-to-analog converter (DAC) that supports both voltage and current output, featuring dynamic power control and HART connectivity.

1. Basic parameters

The main parameters of AD5755-1ACPZ include:

Number of digits: 16

Digital-to-analog converter number: 4

Establishment time: 18µs

Output type: Current - Unbuffered

Differential output: None

Data interface: SPI, DSP

Reference types: External, Internal

Voltage - Power supply, simulation: 9V to 33V, -10.8V to 26.4V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±0.006, ±11

Architecture: R-2R

Operating temperature: -40°C to 105°C

Package/Housing: 64-VFQFN bare pad, CSP

Supplier device packaging: 64-LFCSP-VQ (9x9)

Installation type: Surface mount type

2. Detailed introduction

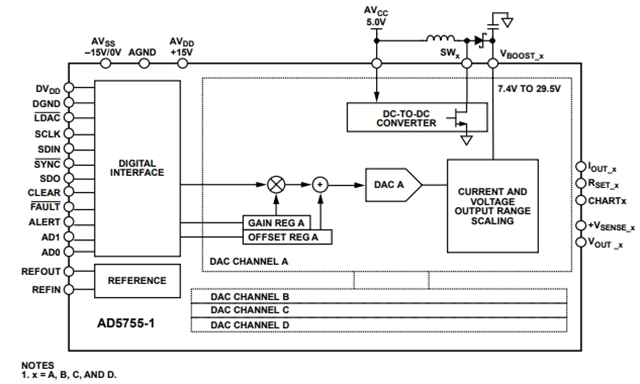

The AD5755-1ACPZ device is a four-channel, voltage and current output DAC, powered by a supply ranging from -26.4V to +33V. The on-chip dynamic power control function is based on the DC-DC boost converter optimized to achieve the lowest on-chip power consumption. In the current mode, the voltage of the output driver can be adjusted within the range of 7.4V to 29.5V to minimize the package power consumption. Each channel has a corresponding CHART pin, so the HART signal can be coupled to the current output terminal of the AD5755-1ACPZ.

The AD5755-1ACPZ device features a multifunctional three-wire serial interface, capable of operating at a maximum clock rate of 30MHz, and is compatible with standard SPI, QSPI™, MICROWIRE™, DSP, and microcontroller interface standards. This interface also provides an optional CRC-8 group error checking function and a watchdog timer for monitoring interface activities.

3. Product Features

The main features of AD5755-1ACPZ include:

16-bit resolution and monotonicity

Dynamic power supply control for thermal management

The current and voltage output pins can be connected to one pin

Current output range: 0 mA to 20 mA, 4 mA to 20 mA or 0 mA to 24 mA

Total non-adjusted error (TUE) : ±0.05% (maximum value)

Voltage output range (including 20% overrange) : 0 V to 5 V, 0 V to 10 V, ±5 V and ±10 V

Total non-adjusted error (TUE) : ±0.04% (maximum value)

User-programmable bias and gain

Intrathecal diagnosis

On-chip reference voltage source (±10 ppm/°C, maximum value)

Temperature range: -40°C to +105°C

4. Application scenarios

The AD5755-1ACPZ is suitable for a variety of industrial control scenarios, including

Process Control ‌ : For the precise control of various industrial processes.

Actuator Control ‌ : Drives and regulates the actuator.

PLC and HART network connection ‌ : Supports network communication in industrial automation.
