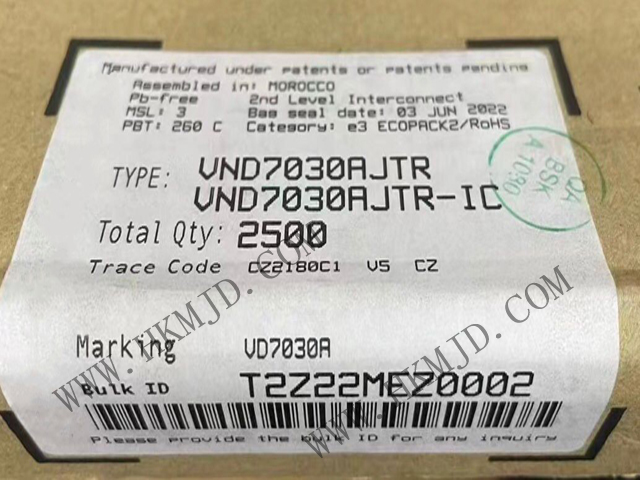

Mingjiada Electronics specialises in supplying genuine VND7030AJTR, an automotive-grade dual-channel high-side driver designed and produced by STMicroelectronics, manufactured using advanced VIPower® M0-7 technology and packaged in PowerSSO-16. The product is designed for automotive electronics applications, with a MultiSense analogue feedback function, which can meet the modern automotive demand for high reliability and high accuracy diagnostics for load driving.

The VND7030AJTR is an intelligent high voltage side driver with extremely low standby current and is compatible with 3V and 5V CMOS outputs, making it particularly suitable for driving a wide range of automotive resistive, inductive and capacitive loads. As a key component in automotive electronic systems, it is widely used in body control modules, lighting systems, motor drives and other fields.

VND7030AJTR Product Parameters

Load voltage range: 4V to 28V

Maximum Output Current: 40A

On-resistance (typical): 31 mOhm

Input Type: Non-inverting

Fault Protection: Current Limit (Fixed), Open Load Detection, Over Temperature, Over Voltage, UVLO

Operating Temperature: - 40°C to 150°C

Mounting Type: Surface Mount

Package: PowerSSO-16

Application Areas

VND7030AJTR is mainly used in automotive applications, the following are some specific application scenarios:

Automotive lighting system:

Dedicated to automotive signal light driver, can support up to 2 P21W or SAE1156 bulbs in parallel

Suitable for LED rear combination light drive control

Can meet the daytime running lights, position lights, brake lights and other lighting needs

Body Control Module:

As the core driver of the entry-level body control module

Used for actuator drives such as window up/down, door lock control, seat adjustment, etc.

Efficient load management and troubleshooting in BCMs

Other automotive load drives:

Fuel injection system solenoid valve drive

Cooling fan control

Heater element drive

Various relays and solenoid actuator controls
