The CY8C4024FNI-S402 is a 32-bit programmable embedded system controller based on an Arm Cortex-M0+ CPU designed to provide high flexibility and customisation for multiple application scenarios. This microcontroller has the following main characteristics:

Processor ‌ : 32-bit single-core Arm Cortex-M0+ processor, running at 24MHz‌.

Storage capacity ‌ : 16KB flash memory and 2KB SRAM‌.

Connection capability ‌ : The CY8C4024FNI-S402 supports multiple communication interfaces including I2C, IrDA, LINbus, Microwire, Smart card, SPI, SSP, UART/USART ‌.

Peripheral ‌ : including low voltage detection/reset, capacitive sensing, LCD, LVD, POR, PWM, WDT and other functions ‌.

Overview

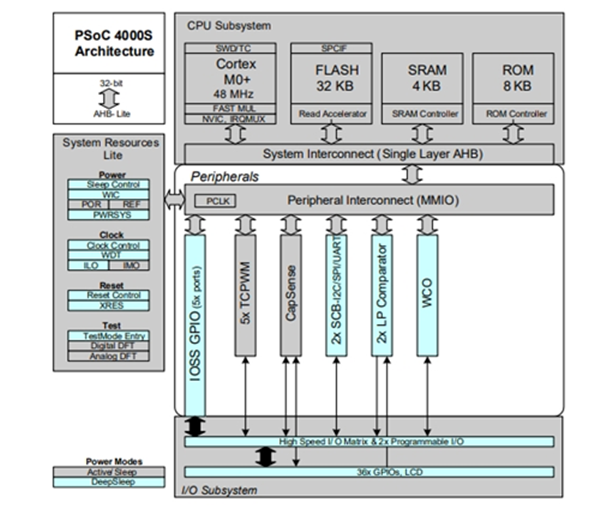

PSoC® 4 is an expandable and reconfigurable platform architecture for a series of programmable embedded system controllers based on Arm® Cortex®-M0+ CPU. It integrates programmable and reconfigurable analog and digital modules and is capable of flexibly and automatically routing resources. The PSoC 4000S product series is a member of the PSoC 4 platform architecture. This product series integrates the following four items: microcontrollers with standard communication and timing peripherals, capacitive touch sensing (CapSense) systems with first-class performance, programmable universal, continuous and analog modules with switching capacitors, and programmable interfaces. In response to the requirements of new applications and designs, the PSoC 4000S product is upward compatible with the PSoC 4 platform series products.

Performance parameters

The main parameters of CY8C4024FNI-S402 include:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit single-core

Speed: 24MHz

Connection capabilities: I2C, IrDA, LINbus, Microwire, smart Card, SPI, SSP, UART/USART

Peripherals: Under-voltage detection/reset, capacitive sensing, LCD, LVD, POR, PWM, WDT

I/O number: 21

Program storage capacity: 16KB (16K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 2K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.71V to 5.5V

Data converter: A/D 1x10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 25-WLCSP (2.02x1.93)

Furthermore, CY8C4024FNI-S402 also has the following application scenarios:

Embedded systems ‌ : Suitable for embedded applications that require high integration and multiple peripheral support.

Smart WEARABLE devices ‌ : Support health monitoring and the design and development of smart wearable devices.

Internet of Things (IoT) devices ‌ : For a wide range of iot devices that require low power consumption and high integration.
