Overview

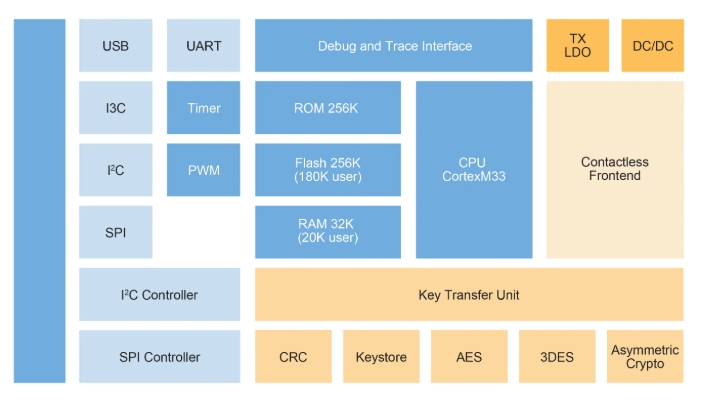

The PN7642 single-chip NFC solution includes a high-performance NFC card reader, customizable MCUS, and a security toolbox. The low power Arm® Cortex M33 features 180kB of programmable flash memory, SESIP-certified security system optimized for encryption and secure key memory. The NXP PN7642 is highly integrated and designed to replace additional MCUS and dedicated security elements.

The PN7642 single-chip solution features extensive controller and host interfaces and a comprehensive product support package for rapid design integration.

Device: PN7642EV/C101Y

Type: NFC/RFID tags and transponders

Key features

ARMCortexM-33neihe: 90MHz, 20kB user RAM, 180kB user flash memory.

Support for read/write and card emulation modes, NFCForum-compliant NFC card readers.

R/W mode: ISO/IEC14443A-B and traditional B', FeliCa™, ISO15693, ISO18000EPC-HF. The complete MIFARE®, DESFire®, NTAG® (NTAG5 to 212kbit/s), ICODE® and SmartMX® series

CE mode: ISO/IEC14443-4A with ALM/PLM, up to 848kbps

High output power 2W: Maximum operating transmitter current 350MA with dynamic Power Control (DPC2.0) and automatic Waveform Control (AWC)

Integrated DC/DC supports a single 3.3V power supply with maximum transmit power

Ultra-low power card detection (22µA type)

Support ECP2.0 (Apple Enhanced Contactless Polling)

Hardware acceleration of symmetric and asymmetric algorithms

A secure keystore that can store up to 13 128-bit symmetric keys (or 6 256-bit keys)

Software protection against bypass attacks

2.4 to 5.5V power supply

Rich interface

SPI (up to 15Mbit/s) and I²C (up to 3.4Mbit/s) controllers

I²C,I³C (up to 3.4Mbit/s) and SPI targets

Up to 21 general purpose IO

USB devices and HSUART

3 PWM interfaces, ADC (10b) (no DPC configuration)

Connect to the ISO-AUX interface of TDA

4 GP32b timers, 1 WD timer, SWD interface

Extensive support tools, including integration into MCUXpressoIDE/SDK

Update firmware from host interfaces, NFC, and user applications

Extended operating temperature range: -40 to +105°C

GlobalPlatform certified SESIPL2

VFBGA64 package (4.5x4.5x0.8mm)

Target application

Smart city

Trusted ID card reader

Smart lock

Battery communication controller for light electric vehicles

Access control

Closed-loop payment

Smart home

Small and medium-sized household appliances

Large household appliance

Communication infrastructure

Broadband modem and home gateway

Shenzhen Mingjiada Electronics Co., LTD. (sold) (recycled) PN7642EV/C101Y single-chip NFC solution.
