Shenzhen Mingjiada Electronics Co., Ltd.-long-term sale of Renesas (ISL9241HRTZ) buck-boost configurable battery chargers, providing flexible and efficient power management solutions for consumer electronics, industrial equipment and portable terminals.

ISL9241HRTZ battery charger, product details are shown below:

Model: ISL9241HRTZ

Package: TQFN-32

Type: Buck-Boost Battery Charger

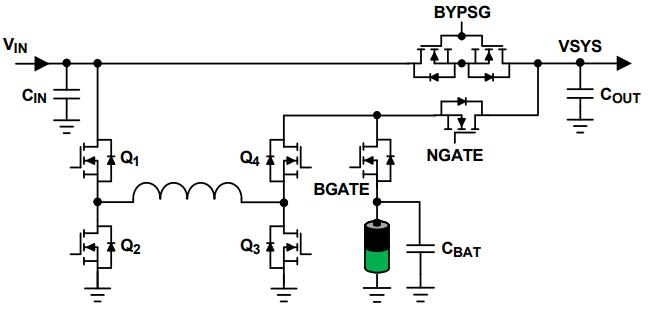

ISL9241HRTZ product diagram:

Overview: The ISL9241HRTZ is a digitally configurable buck-boost battery charger that supports narrow voltage direct charging (NVDC) and hybrid buck-boost (HPBB/bypass) charging and uses firmware control to switch between modes. The firmware using the controller also supports bypass mode, which allows the adapter to directly power the system.

ISL9241HRTZ Specifications:

Battery chemistry: Lithium-ion

Number of batteries: 2 ~ 4

Current-Charging: Constant Current-Programmable

Programmable features: current, timer

Failure protection: overcurrent, overtemperature, overvoltage

Battery pack voltage: 3.9 V ~ 18.304 V

Voltage-Supply (Max): 23.4 V

Interface: I2C, SMBus

Operating temperature:-10 °C ~ 100 °C

Mounting Type: Surface Mount

Package/Enclosure: 32-WFQFN Bare Pad

Vendor Device Package: 32-TQFN (4x4)

ISL9241HRTZ Application:

2-to 4-cell tablets, laptops, powerbanks, and any USB-C interface portable device that requires batteries.

Typical applications:

The ISL9241HRTZ supports reverse buck, boost, or buck-boost operation of 2 to 4 batteries to adapter ports (OTG mode). This allows configuring a USB-C powered (PD) output that supports a programmable power supply (PPS) port. The ISL9241HRTZ serial communication uses SMBus/I2C, allowing many critical parameters to be programmed to provide a customized solution.

[Mingjiada Electronics] has a long-term supply of Renesas (ISL9241HRTZ) buck-boost battery chargers. If you need to know more about the product ISL9241HRTZ, please contact Mingjiada Electronics to obtain product specifications and exclusive sample quotations.
