The ADG1408YRUZ is a monolithic iCMOS® analog multiplexer, a multiplex switching IC manufactured by Analog Devices.

Main characteristics

On-resistance: 4.7Ω (Max., 25°C)

On-resistance flatness: 0.5Ω

Continuous current up to 190 mA

Rated power supply voltage: ±15 V/12 V/±5 V

3 V logic compatible input

Rail to rail work

First open and then close switch action

Available in 16-pin TSSOP package

Application field

The ADG1408YRUZ is used in a wide range of applications, including:

Relay replacement ‌ : Due to its low on-resistance and high voltage capability, the ADG1408YRUZ can replace traditional mechanical relays for more reliable switching performance.

Audio and video routing ‌ : In audio and video systems, the ADG1408YRUZ can be used for signal routing to ensure high quality audio and video transmission.

Automatic test equipment ‌ : In automatic test equipment, the ADG1408YRUZ can be used to test a variety of signal sources and loads.

Data acquisition system ‌ : In the data acquisition system, it can efficiently switch multiple input signals.

Temperature measurement system ‌ : used to switch the signal of the temperature measurement system to ensure the accuracy of measurement.

Avionics ‌ : In avionics, the ADG1408YRUZ is designed to withstand high voltage and temperature environments.

Battery powered systems ‌ : Due to its low power consumption, the ADG1408YRUZ is suitable for battery powered devices.

Communication system ‌ : Used in communication systems for switching and routing signals.

Medical equipment ‌ : In medical equipment, ensure the accurate transmission and processing of medical signals ‌.

Overview

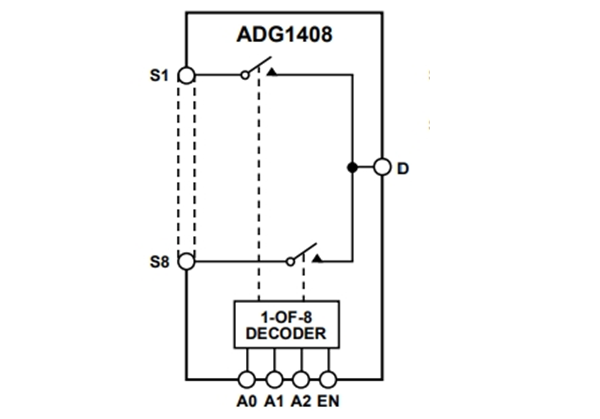

The ADG1408YRUZ is a single-chip iCMOS® analog multiplexer with 8 built-in single channels. The ADG1408YRUZ switches one of the eight inputs to the public output based on the address determined by the 3-bit binary address lines A0, A1, and A2. This device provides EN inputs to enable or disable the device. When disabled, all channels are closed.

Technical specification

Product: ADG1408YRUZ

Number of channels: 8 channels

Configuration: 1 x 81

Supply voltage - Minimum: 10.8V

Power supply voltage - Max: 13.2V

Minimum dual supply voltage: +/- 13.5V

Maximum dual supply voltage: +/- 16.5V

On-resistance - Max. : 4.7 Ohms

Run time - Max. : 120 ns

Idle time - Maximum value: 120 ns

Operating temperature: -40 °C to + 125°C

Package: TSOP-16

Bandwidth: 60 MHz

Height: 1.05mm

Length: 5 mm

Width: 4.4mm

Disable isolation - Typical value: -70 dB

Working power supply voltage: 12 V

Pd-power dissipation: 4.9mW

Product type: Multiplexer Switch ICs
