Shenzhen Mingjiada Electronics Co., Ltd. provides customers with 1Gsps, multi-channel high-speed ADC HMCAD1511 analog-to-digital converter products.

Introduction

The HMCAD1511 is a versatile, high-performance, low-power analog-to-digital converter (ADC) that uses time-interleaved technology to improve sampling rates. The integrated crosspoint switch activates user-selected inputs.

In single-channel mode, the HMCAD1511 can select one of four inputs as a valid input for a single ADC channel. In dual-channel mode, the HMCAD1511 can select any two of the four inputs for each ADC channel. In four-channel mode, any HMCAD1511 input can be assigned to any ADC channel.

Based on a patented structure, the HMCAD1511 uses an internal reference voltage source circuit, serial control interface and serial LVDS/RS DS output data. The data and frame synchronization clock is used for data capture by the receiver. With an ENOB greater than 7.5 (up to 16X gain) for internal 1 to 50X digital coarse tuning gain, oscilloscope gain setting can be achieved digitally. The internal digital fine-tuned gain can be set individually for each ADC to calibrate the gain error.

The HMCAD1511 is designed to easily interface with field programmable gate arrays (FPgas) from multiple vendors.

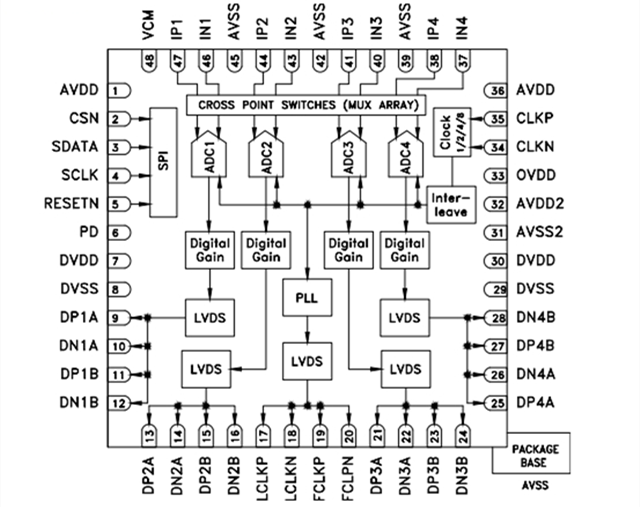

HMCAD1511 function diagram

Key features and functions include:

1. Sampling rate of HMCAD1511 ‌ :

‌ Single-channel mode ‌ : Up to 1000 MSPS (megabits per second).

Dual channel mode ‌ : Up to 500 MSPS sampling rate.

Four-channel mode ‌ : Up to 250 MSPS‌.

‌2. Gain and SNR of HMCAD1511 ‌ :

Integrated crossover switch (multiplex array) with 1X to 50X digital gain up to 32X loss-free.

The signal-to-noise ratio (SNR) is 49.8 dB at 1X gain and 48.2dB at 10X gain ‌.

3. HMCAD1511 power consumption and startup time ‌ :

Ultra-low power consumption, 710 mW (including I/O, 1000 MSPS).

The startup time from sleep state is 0.5μs, and the startup time from power off state is 15μs ‌.

4. Other features of HMCAD1511 ‌ :

Internal low jitter programmable clock divider.

Internal reference voltage source circuit, no external components required.

Coarse and fine-tuned gain control, each ADC can be individually set digital gain fine-tuned capability.

Internal misalignment correction.

The control interface pin has a 1.7-3.6V CMOS logic voltage.

Serial LVDS/RS DS output.

7x7 mm QFN 48 pin (LP7D) package ‌.

Application field

HMCAD1511 is used in a wide range of applications, including:

Usb-powered oscilloscope ‌ : With its high sampling rate and multi-channel mode, the HMCAD1511 provides high-quality signal capture.

Digital oscilloscope ‌ : used for fast data processing and stable performance.

Satellite receiver ‌ : With its low power consumption and high data transmission efficiency, HMCAD1511 ensures stable operation ‌ in various application scenarios.
