The ADN4651BRWZ adopts magnetic coupling technology, supports ‌600 Mbps transmission rate ‌, and is compatible with TIA/EIA-644-A standard. It is suitable for high reliability scenarios such as industrial automation, communication equipment and medical instruments ‌.

Technical parameters (ADN4651BRWZ)

‌ Supply voltage ‌ : 2.375V to 3.6V ‌.

‌ Maximum power dissipation ‌ : 2780 mW‌.

‌ Package format ‌ : 20-pin SOIC package ‌

‌ Operating temperature range ‌ : -40°C to +125°C‌

Due to its unique high-speed transmission rate and low jitter characteristics, the ADN4651BRWZ device has obvious advantages in applications requiring high reliability and high-speed data transmission.

Introduction

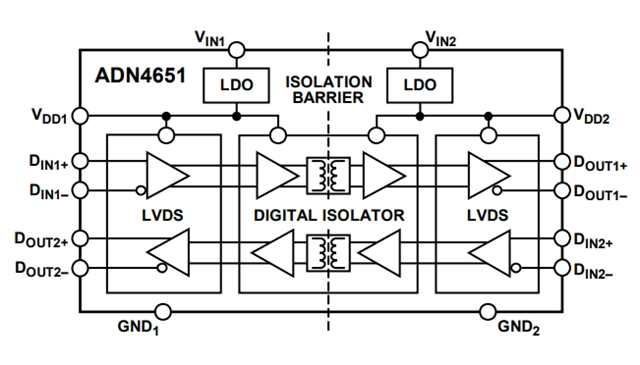

The ADN4651BRWZ is a signal-isolated, low-voltage differential signal (LVDS) buffer with data rates up to 600 Mbps and extremely low jitter. The device integrates iCoupler technology to enhance high-speed operating performance and provides electrical isolation of LVDS drivers and receivers in accordance with TIA/EIA-644-A standards. Thus, the direct isolation of LVDS signal chain is realized.

The device is available in multiple channel configurations, and the LVDS receiver on the ADN4651BRWZ has a built-in fail-safe mechanism to ensure that when the input is floating, short-circuited, or terminated without a drive, the corresponding LVDS driver output is logical 1.

The LVDS and isolation circuits use a 2.5V power supply, and the ADN4651BRWZ provides high-speed operation and low jitter. The integrated on-chip LDO uses an external 3.3V power supply to provide the required 2.5V power supply. Rated for a wide industrial temperature range, the ADN4651BRWZ is available in a 20-pin wide-body SOIC package with 5kV rms isolation.

The ADN4651BRWZ has the following key features:

5 kV rms LVDS isolator

Meets TIA/EIA-644-A LVDS standards

4.5ns maximum propagation delay

151 ps Maximum peak-to-peak jitter (600 Mbps)

100 ps maximum pulse deflection

Deflection between different device channels: up to 600 ps

2.5V or 3.3V power supply

-75 dBc Power supply ripple suppression and burr suppression

±8 kV IEC 61000-4-2 ESD isolation protection

High common-mode transient immunity: >25 kV/μs

With a 600Mbps PRBS or 300 MHz clock, the ADN4651BRWZ meets the EN55022 Class B radiation standard

Safety and Regulatory Certification (WR-20 package)

UL (pending) 1 minute 5,000 V rms, compliant with UL 1577

CSA Component Acceptance Notice #5A (pending application) Certificate of VDE Compliance (pending application)

DIN V VDE V 0884-10 (VDE V 0884-10):2006-12

VIORM = 424 V peak

For open, short and terminated inputs, the ADN4651BRWZ has a fail-safe feature that ensures high output levels

Operating temperature range: -40℃ to +125℃

5kV rms, ADN4651BRWZ in SOIC-W20 package, creepage distance and electrical clearance of 7.6mm

Application scenario

The device is suitable for a variety of application scenarios, including:

Analog Front end (AFE) isolation ‌ : ADN4651BRWZ is used to isolate analog signals to improve system stability and reliability. ‌

Data plane isolation ‌ : The ADN4651BRWZ provides isolation in high-speed data communications, preventing signal interference and ground loop problems.

Isolation of high speed clock and data link ‌ : ADN4651BRWZ ensures accurate transmission of clock and data signals to avoid interference.

Isolated Serial Peripheral interface (SPI) ‌ : ADN4651BRWZ is widely used in SPI communication which requires high speed and high reliability.

For price information of the ADN4651BRWZ, please consult the official website (www.hkmjd.com).
