Product overview

The LTC1859IG is an 8-channel, 16-bit analog-to-digital converter (ADC) with a sampling rate of 100ksps and a fail-safe capability of ±25V ‌‌. Powered by a single 5V supply, the device supports a software-programmable input range of 0V to 5V, 0V to 10V, ±5V or ±10V, and can be set to a single-ended or differential input ‌. The LTC1859IG also has two outage modes with a typical power consumption of 40mW and a typical signal-to-noise ratio of 87dB‌. In addition, it uses an SPI interface, is compatible with MICROWIRE™ serial I/O, and has a nap mode and a sleep mode ‌.

LTC1859IG Key features: ‌

SoftSpan™ input range programmable ‌ : LTC1859IG supports software configuration of input voltage ranges (0-5V, 0-10V, ±5V, ±10V), compatible with single-ended or differential input modes ‌.

High reliability and protection capability ‌ : all channels are equipped with ‌±25V fault protection ‌, to ensure that the conversion accuracy is not affected ‌ when the signal is overloaded.

Low power design ‌ : typical power ‌40mW‌, LTC1859IG supports "nap mode" and "sleep mode" to further reduce energy consumption ‌.

LTC1859IG Key parameters

Resolution: 16 bits

Sampling rate: 100ksps

Input channels: 8 channels (programmable single-ended/differential)

Supply voltage: Single power supply 5V (4.75V~5.25V)

Package: 28 pin SSOP (5.30mm wide)

Working temperature: -40℃~85℃ (industrial grade)

The LTC1859IG has the following features:

Sampling rate: 100ksps

8-channel multiplexer with ±25V protection capability

Single 5V power supply

Software programmable input range:

0V to 5V, 0V to 10V, ±5V or ±10V

Single-ended or differential

±3LSB INL (LTC1859), ±1.5LSB INL (LTC1858), ±1LSB INL (LTC1857)

Power consumption: 40mW (typical value)

SPI/MICROWIRE™ compatible serial I/O

Power off: Nap mode and sleep mode

Signal-to-noise ratio: Typical value is 87dB (LTC1859)

Operate using internal or external benchmarks

Internal synchronous clock

The LTC1859IG comes in a 28-pin SSOP package

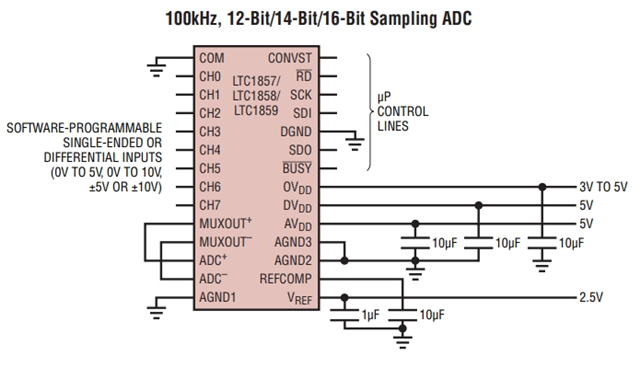

Typical official website application scenarios ‌

‌1. Industrial Automation and Process control ‌

The LTC1859IG can simultaneously collect multiple sensor signals (such as temperature, pressure, flow), with high precision (16-bit resolution, ±3LSB INL) and wide input range to meet industrial real-time monitoring needs ‌.

‌2. High Precision Data Acquisition System (DAQ) ‌

In PC or embedded systems, the LTC1859IG supports 100ksps sampling rates and differential/single-ended input configurations for high-speed signal processing and multi-channel synchronous acquisition ‌.

‌3. Digital Signal Processing (DSP) and Audio analysis ‌

With 87dB signal-to-noise ratio (SNR) and low distortion, the LTC1859IG accurately captures audio signals for high dynamic range scenarios such as vibration monitoring and spectrum analysis ‌.

‌4. Automotive electronic and Medical equipment ‌

Its wide temperature working range (-40℃~85℃) and anti-interference ability, suitable for vehicle environmental monitoring, medical multi-parameter monitor and other harsh scenes ‌.

‌5, intelligent testing instrument ‌

The LTC1859IG's software-programmable input range and internal/external reference voltage configurations simplify calibration processes and are suitable for laboratory precision measurement equipment ‌.
