Overview

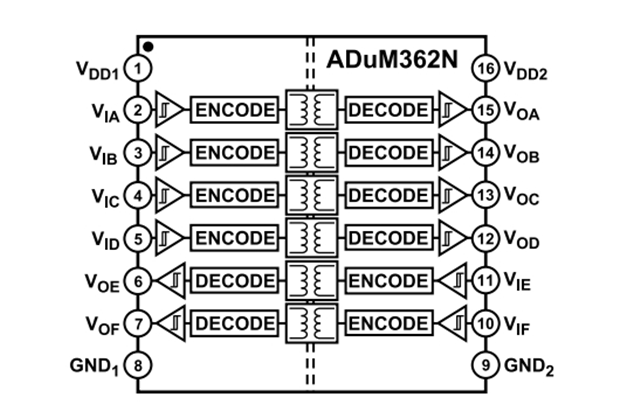

The ADUM362N1BRQZ is a 6-channel digital isolator based on (ADI) iCoupler® technology. The device combines high-speed complementary metal oxide semiconductor (CMOS) and back-to-back monolithic air-core transformer technology with outstanding performance characteristics and meets the CISPR 32/EN 55032 Class B limit of 5 Mbps. The ADUM362N1BRQZ has a maximum propagation delay of 10 ns and a pulse width distortion of less than 3 ns at 5 V operating voltage. The channel matching is very strict, and the maximum value is 3.0 ns.

The ADUM362N1BRQZ data channel is self-contained and available in a variety of configurations with a rated voltage of 3 kV rms. This device operates in the supply voltage range from 2.25V to 5.5V on both sides, which is compatible with low voltage systems and enables voltage conversion across the isolation gate.

The ADUM362N1BRQZ isolator has the following main features

High common-mode transient immunity: 180 kV/μs (typical)

It has high robustness to radiation and conduction noise

Low propagation delay

5 V operating voltage 6.2ns (Max. 10 ns)

Low dynamic power consumption, <1.65 mA/ channel at 1 Mbps

2.25V to 5.5V level conversion

Maximum guaranteed data rate of 150 Mbps (5 V operating voltage)

High temperature: 125°C

Safety and regulatory certification

RQ-16 [QSOP] encapsulation

UL 1577 (pending application)

VISO = 3000 VRMS (lasts 1 minute)

These characteristics make the ADUM362N1BRQZ excellent in systems that require high reliability and high-speed data transmission, especially in fields such as industrial automation and medical equipment.

Basic parameter

Product: ADUM362N1BRQZ

Number of channels: 6 channels

Data rate: 150 Mb/s

Insulation voltage: 3000 Vrms

Supply voltage: 2.25V to 5.5V

Working power supply current: 11.5ns

Propagation delay: 6.2ns

Operating temperature: -40 °C to + 125°C

Package/housing: QSOP-16

Humidity sensitivity: Yes

Product type: Digital Isolators

Pulse width: 6.6ns

Pulse width distortion: 0.3ns

Application field

The ADUM362N1BRQZ isolators are widely used in the following fields:

Serial Peripheral Interface (SPI) data converter isolation

RS-485 and controller LAN with Flexible Data Rate (CAN FD) industrial fieldbus isolation

PWM controller signal isolation

Universal multichannel isolation
