Analog Devices (ADI) introduces the ADUM7701BRWZ, a 16-bit isolated sigma-delta modulator with integrated iCoupler® digital isolation technology, designed for high-voltage isolation applications. Shenzhen Mingjiada Electronics Co., Ltd. supplies ADUM7701BRWZ from stock, providing high-performance, high-reliability solutions.

As a representative product of ADI's isolated analogue-to-digital converter series, the ADUM7701BRWZ integrates advanced iCoupler® digital isolation technology, which is capable of converting analogue input signals into high-speed one-bit data streams, and at the same time achieves common-mode transient immunity as high as 150 kV/μs, ensuring stable operation of the system in high-voltage environments.

The ADUM7701BRWZ is available in a wide-body SOIC-16 package and operates over the -40°C to +125°C temperature range, making it ideal for harsh environments such as industrial automation, motor control, and power monitoring. Its high integration and low power design make it ideal for isolated signal chain solutions.

Product Features ADUM7701BRWZ

High Performance Σ-Δ Modulator

The ADUM7701BRWZ uses second-order Σ-Δ modulation technology and supports a master clock input frequency of up to 21 MHz, enabling the conversion of analogue signals into high-speed bit data streams. With a signal-to-noise ratio (SNR) of 86 dB and an effective number of bits (ENOB) of 14, the ADUM7701BRWZ ensures high-precision signal conversion.

Integrated Digital Isolation

With ADI's iCoupler® technology, the ADUM7701BRWZ provides on-chip digital isolation up to 5 kV RMS for signal isolation in high-voltage environments.

Low Power Design

With a typical power consumption of only 10 mA from a 5 V supply, the device supports low-power modes for battery-powered or energy-efficient applications.

High Common Mode Transient Immunity

With a common-mode transient immunity of up to 150 kV/μs, the ADUM7701BRWZ maintains stable signal transmission in strong EMI environments.

Flexible Power Configuration

Supports analogue and digital supply voltages from 3 V to 5.5 V, compatible with a wide range of system design requirements.

Applications ADUM7701BRWZ

Shunt current monitoring

AC motor control

Power and solar inverters

Wind turbine inverters

Analogue to Digital and Optical Isolator Replacement

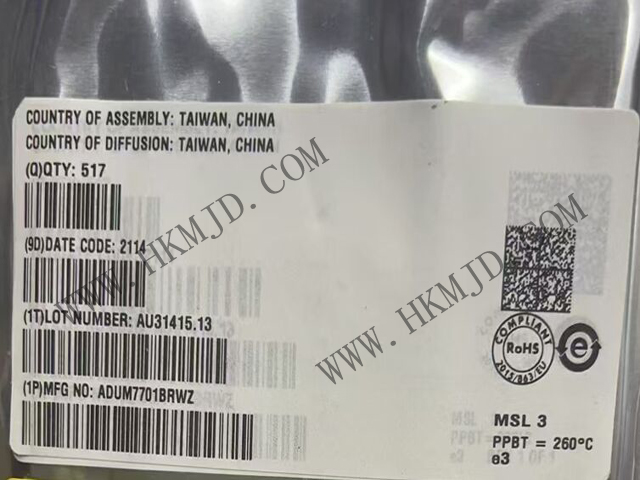

Mingjiada Electronics stocks ADUM7701BRWZ high performance isolated analogue-to-digital converters to ensure you get what you need, fast. We promise that ADUM7701BRWZ are all original and reliable, and provide the following services:

Spot supply: sufficient inventory to meet your urgent procurement needs.

Technical support: professional technical team to provide you with a full range of support from selection to application.

Flexible Purchasing: Whether it is a small batch of testing or mass production, we can provide you with customised purchasing solutions.
