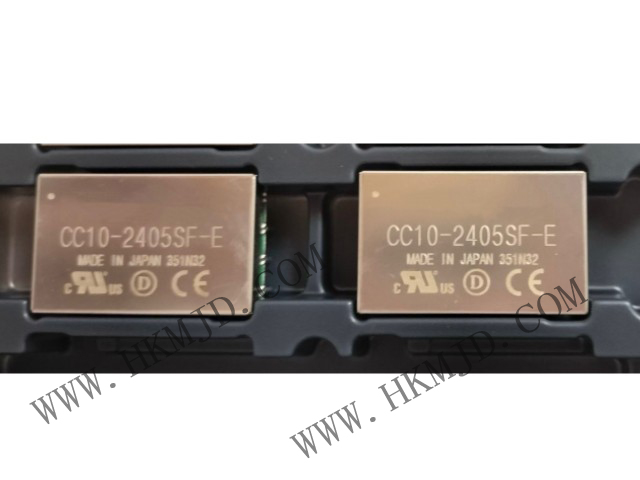

Supply Power Module CC10-2405SF-E Isolated DC/DC Converter 24Vin 5Vout 2A 10W DIP TH DC-DC

Supply Power Module CC10-2405SF-E Isolated DC/DC Converter 24Vin 5Vout 2A 10W DIP TH DC-DC

Source:our siteTime:2023-10-31Views:

Mingjiada Electronics supplies Power Module CC10-2405SF-E Isolated DC/DC Converter 24Vin 5Vout 2A 10W DIP TH DC-DC, brand new and original, quality assurance!Introducing:The TDK-Lambda CC series of DC-DC converters offer high density with output volta…

Mingjiada Electronics supplies Power Module CC10-2405SF-E Isolated DC/DC Converter 24Vin 5Vout 2A 10W DIP TH DC-DC, brand new and original, quality assurance!


Introducing:

The TDK-Lambda CC series of DC-DC converters offer high density with output voltages of 3.3V, 5V, 12V, and 15Vdc, and output power ratings from 3W to 30W.The CC modules are available in through-hole or SMT packages, with or without a shielded metal case. They are suitable for extended temperature range applications from -40°C to +85°C and offer fully regulated high efficiency (92% typical).The TDK-Lambda CC series of DC-DC converters are ultra-compact, fully-isolated converters with a wide range of dc inputs (24V or 48V nominal) that are ideal for telecom, test, industrial and broadcast applications.


CC10-2405SF-E Specifications

Series: CC-E (10W)

Package: Tray

Type: Isolation Module

Number of Outputs: 1

Voltage - Input (Min): 18V

Voltage - Input (Max): 36V

Voltage - Output: 1 5V

Current - Output (Max): 2A

Power (W): 10 W

Voltage - Isolation: 500 V

Application: ITE (Commercial)

Operating Temperature: -40°C ~ 85°C

Mounting Type: Through Hole

Package/Housing: 7-DIP Module

Size/Dimensions: 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)

Control Characteristics: Enable, Active Low
