MFS5600AMMA7ES (NXP) FS5600 Automotive step-down regulators and controllers

Source:本站Time:2023-10-25Views:

(Supplied, recalled) MFS5600AMMA7ES (NXP) FS5600 Automotive step-down regulators and controllers.Product Description:The MFS5600AMMA7ES automotive step-down regulator and controller integrates a battery-connected DC-DC controller (with external FET) a…

(Supplied, recalled) MFS5600AMMA7ES (NXP) FS5600 Automotive step-down regulators and controllers.

Product Description:

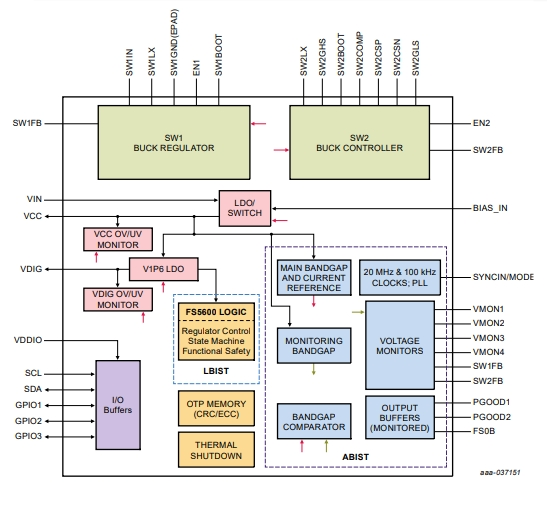

The MFS5600AMMA7ES automotive step-down regulator and controller integrates a battery-connected DC-DC controller (with external FET) and a battery-connected DC-DC converter (with internal FET). The NXP FS5600 has a variety of functional safety features, including a standalone voltage monitor, window watchdog timer, I/O monitoring via ERRMON and FCCU, and built-in self-tests. The FS5600 is available in enhanced ASIL B, ASIL B, and QM models. The enhanced ASIL B version features a Challenger watchdog and Logical BIST (LBIST) that can be used to implement ASIL D functional security at the system level. Additional security mechanisms may need to be established at the system level to comply with ASIL D standards.

Features:

2 high voltage buck converters:

Buck Controller - External FET-900mA gate drive current

Step-down regulator - Internal FET-3A + load capacity

Output accuracy: ±2% Output accuracy

Switching frequency: 250kHz to 3MHz

Efficient PFM mode

GPIO, running seamlessly through PF PMIC

Rated temperature range TJ: -40°C to +150°C

5.0mm x 5.0mm QFN-32

Meets AEC-Q100 Level 1 standard

Security features:
