(Distributed Skyworks) RF Front-End SKY85735-11 5 GHz, 802.11ac Front-End Module

(Distributed Skyworks) RF Front-End SKY85735-11 5 GHz, 802.11ac Front-End Module

Source:our siteTime:2023-10-06Views:

Shenzhen Mingjiada Electronics Co., Ltd. original spot launch Skyworks RF front-end "SKY85735-11" 5 GHz, 802.11ac front-end module, quality assurance, welcome to call!DescriptionThe SKY85735-11 is a highly integrated 5 GHz front-end module (…

Shenzhen Mingjiada Electronics Co., Ltd. original spot launch Skyworks RF front-end "SKY85735-11" 5 GHz, 802.11ac front-end module, quality assurance, welcome to call!


Description

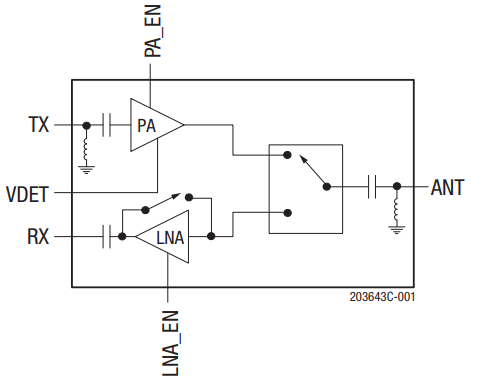

The SKY85735-11 is a highly integrated 5 GHz front-end module (FEM) that incorporates a 5 GHz single-pole, double-throw (SPDT) transmit/receive (T/R) switch, a 5 GHz low noise amplifier (LNA) with bypass, and a 5 GHz power amplifier (PA) for mobile/portable 802.11ac applications and systems.


Enable/disable feature saves power in shutdown mode. An integrated power detector with 20 dB dynamic range provides closed-loop power control within the system.


The device is available in a compact 12-pin 2.0 x 2.0 x 0.6 mm multi-chip module (MCM) package.


Applications

 802.11ac set-top boxes, networking and personal computer systems Systems

 PC Cards, PCMCIA Cards, Mini-Cards and Semi-Mini-Cards

 WLAN-enabled wireless video systems


Features

 Integrated high-performance 5 GHz PA, low-noise amplifier with bypass, and SPDT

 Fully matched inputs and outputs

 Integrated positive slope power detector

 Transmit loopback mode

 Transmit gain: 32 dB

 Receive gain: 14 dB

 Output Power: +21 dBm, @3% (-30 dB) DEVM, MCS7, HT40

 Output Power: +20 dBm @ 1.8% (-35 dB) DEVM, MCS9, VHT80

 Direct connection to a battery with a nominal supply voltage of 5 V

 Small MCM (12-pin, 2.0 x 2.0 x 0.6 mm) package (MSL3, 260 C per JEDEC J-STD-020)
