[Original] The LTM8056MPY is a 58VIN buck-boost μModule ® regulator.

[Original] The LTM8056MPY is a 58VIN buck-boost μModule ® regulator.

Source:本站Time:2023-10-06Views:

(Recovered, supplied) LTM8056MPY 58VIN, buck-boost type μModule(micro module) regulator.IntroductionThe LTM8056 is a 58VIN, buck-boost type μModule(micro module) regulator. The switch controller, power switch, inductor and support components are bui…

(Recovered, supplied) LTM8056MPY 58VIN, buck-boost type μModule®(micro module) regulator.


Introduction

The LTM8056 is a 58VIN, buck-boost type μModule®(micro module) regulator. The switch controller, power switch, inductor and support components are built into the package. A complete design is achieved by using only a resistor to set the switching frequency, a resistance divider to set the output voltage, and output and input capacitors. Only a small number of components are needed for additional functions such as input and output average current regulation. The LTM8056 operates in an input voltage range of 5V to 58V and can adjust the output voltage between 1.2V and 48V. SYNC input and CLKOUT output for easy synchronization.


The LTM8056 is available in a compact molded resin ball grid array (BGA) package for automated assembly using standard surface mount equipment. The LTM8056 comes with SnPb or RoHS compliant terminal coating.

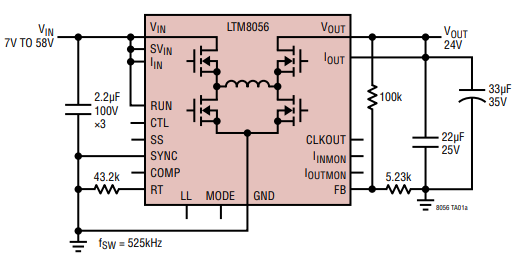

LTM8056MPY Typical application circuit diagram:


Features

Complete buck - boost switching mode power supply

Wide input voltage range: 5V to 58V

Produces 12V/1.7A output from 6VIN

Produces 12V/3.4A output from 12VIN

Produces 12V/5.4A output from 24VIN

Up to 96% efficiency

Adjustable input and output average current limits

Input and output current monitor

The output current can be increased by parallel operation

Wide output voltage range: 1.2V to 48V

Optional switching frequency: 100kHz to 800kHz

Synchronization range: 200kHz to 700kHz

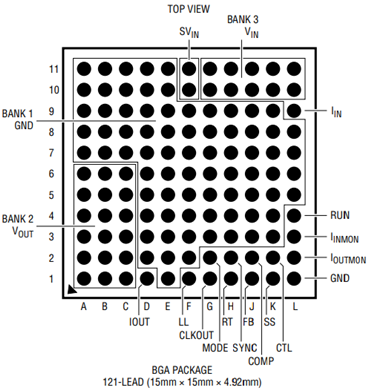

15mm x 15mm x 4.92mm BGA package



Target application

• High power battery operated devices

• Industrial control

• Solar powered voltage regulator

• Solar powered battery charging
