Mingjiada Electronics brand new original supply microcontroller MSP430F2481TPMR 16-bit ultra-low power microcontroller (MCU) only original price advantage quality assurance Welcome to inquire!

Batch number: the latest 23 +

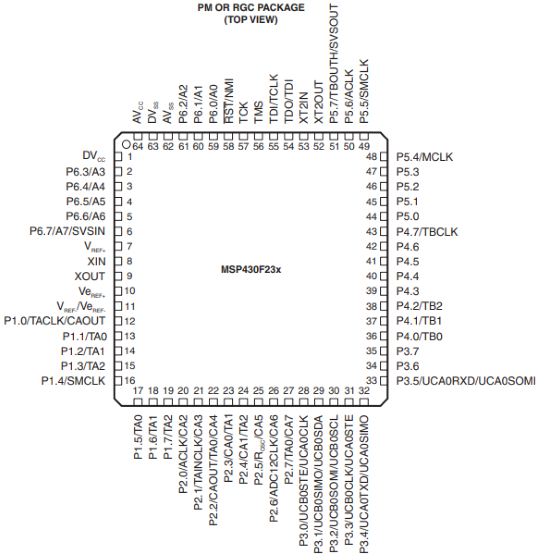

Package: LQFP64

Description: Texas Instruments (TI) MSP430™ family of ultra-low-power microcontrollers includes several devices that feature different sets of peripherals for a variety of applications.

Features

• Low supply voltage range, 1.8V to 3.6V

• Ultra-low power consumption

• Active mode: 270μA (at 1MHz and 2.2V)

• Standby mode (VLO): 0.3μA

• Shutdown mode (RAM hold): 0.1μA

• Ultra-fast wake-up from standby mode in less than 1μs

• 16-bit RISC architecture, 62.5ns instruction cycle time

• Basic clock module configuration:

• Internal frequency up to 16MHz

• Internal very low power low frequency (LF) oscillator

• 32kHz crystal

• 4 internal frequencies up to 16MHz with ±1% calibration accuracy

• Resonator

• External Digital Clock Source

• External Resistors

• 12-bit analogue-to-digital (A/D) converter with internal reference, sample-and-hold and auto-scan functions

• 16-bit Timer_A with 3 Capture/Compare Registers

• 16-bit Timer_B with 7 Capture/Compare Registers (with Shadow Registers)

• 4 Universal Serial Communication Interfaces (USCI)

• USCI_A0 and USCI_A1

• Enhanced Universal Asynchronous Receiver (UART) with automatic baud rate detection

• IrDA encoder and decoder

• Synchronous Serial Peripheral Interface (SPI)

• USCI_B0 and USCI_B1

• I2C

• Synchronous Serial Peripheral Interface (SPI)

• On-chip comparators

• Supply Voltage Monitor/Watcher with Programmable Level Detection

• Undervoltage detector

• Bootloader

• Serial on-board programming, no external programming voltage required, programmable code protection by safety fuse

• Available in 64-pin quad-flat (QFP) and 64-pin quad-flat no-lead (QFN) packages
