Shenzhen Mingjiada Electronics Co., Ltd. sells new and original Texas Instruments (40V) TPS92629QDGNRQ1 single-channel, automotive-type high-side LED driver with thermal sharing control

TPS92629QDGNRQ1 Device Overview

The TPS92629-Q1 single-channel LED driver features a unique thermal management design that reduces device temperature rise. The TPS92629-Q1 is a linear driver powered directly from an automotive battery with a wide voltage range and can output full current loads up to 250mA. An external shunt resistor can be used to share the output current and driven by the driver. The device has comprehensive diagnostic features including open LED, shorted LED ground, shorted LED battery and device overheat protection. The high accuracy and optimised slew rate of the analogue dimming control supports off-board long line drives, enhancing EMC performance and eliminating flicker and residual image issues. Multiple faults can be reported with different voltage levels on the FAULT pin for safety-critical applications.

TPS92629-Q1 Features

- Complies with AEC-Q100 for automotive applications:

- Temperature class 1: - 40 °C to 125 °C, T A

- Wide input voltage range: 4.5 V to 40 V

- Thermal sharing function via external shunt resistor

- Low quiescent current

- 10uA with EN low in shutdown mode

- Low supply current in fault mode

- Single-channel high-precision current regulation:

- Up to 250mA output channel current

- Integrated analogue dimming and PWM dimming control

- ±5% accuracy over the full temperature range in PWM dimming mode

- ±5% accuracy over the full temperature range at 20%-100% of maximum current in analogue dimming mode

- ±5% accuracy over the full temperature range at 20%-100% of maximum current in analogue dimming mode ±10% accuracy over the full temperature range at 10%-20% of maximum current in analogue dimming mode

- Low voltage drop:

- Maximum voltage drop: 350 mV at 150 mA

- Low voltage drop: 350 mV at 150 mA Maximum voltage drop: 500 mV at 250 mA

- Diagnostics and Protection

- LED open circuit with auto-recovery

- LED shorted to ground with auto-resume function

- LED battery short-circuit with automatic recovery

- Diagnostic support with adjustable thresholds for low dropout operation

- Safer system with multiple fault reporting capabilities

- Thermal shutdown

- Operating junction temperature range: -40°C to 150°C

TPS92629-Q1 Product Applications

- Exterior small lights: blind spot detection indicators, door handles, charging ports

- Interior lights: roof lights, reading lights

- Exterior taillights: tail lights, centre high mounted brake lights, side marker lights

- General LED Driver Applications

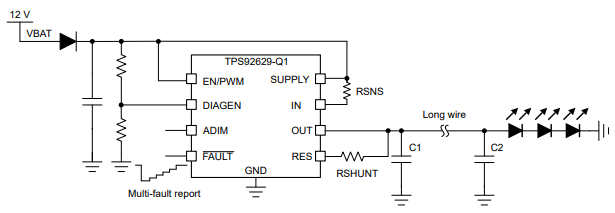

Typical application diagram
