(Recovered, Supplied) (TI) IWR6843ARQSALPR features a single-chip 60GHz to 64GHz smart millimeter wave sensor with integrated Package Antenna (AoP).

Device overview:

The IWR6843AOP is a packaged antenna (AOP) device that is an upgrade to TI's family of single-chip radar devices. The device achieves excellent integration in a very small package and is an ideal solution for low-power, self-monitoring, ultra-precise radar systems in the industrial sector. Several families are currently available, including functional safety compliant devices (SIL2) and non-functional safety devices.

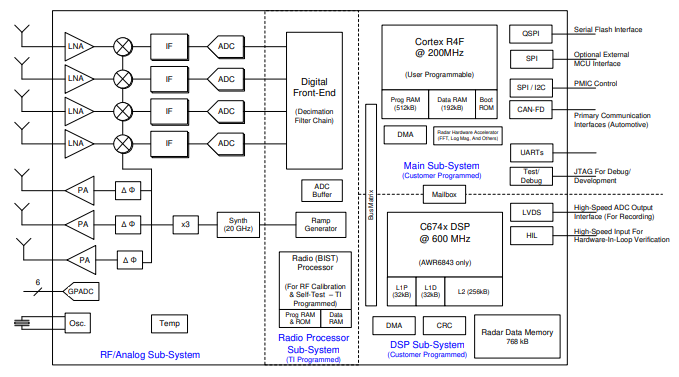

It integrates a DSP subsystem that contains TI's high-performance C674x DSP for radar signal processing. The device contains a BIST processor subsystem that is responsible for radio configuration, control and calibration. In addition, the device includes a user-programmable Arm Cortex-R4F for automotive connectivity. The hardware accelerator block (HWA) performs radar processing and eases the load on the DSP to perform more advanced algorithms. Simple programming model changes support a variety of sensor applications and enable dynamic reconfiguration for multi-mode sensors. In addition, the device is delivered as a complete platform solution that includes a hardware reference design, software drivers, sample configurations, API guides, and user documentation.

IWR6843ARQSALPR Technical parameters:

Type: TxRx + MCU

Rf series/Standard: -

Protocol: -

Modulation: -

Frequency: 60GHz ~ 64GHz

Data rate (Max.) : 900Mbps

Power - Output: 15dBm

Sensitivity: -

Storage capacity: 1.75MB RAM

Serial interface: ADC, GPIO, I²C, SPI, UART

Voltage - power supply: 1.71V ~ 1.89V, 3.13V ~ 3.45V

Current - Receive: -

Current - Transmission: -

Operating temperature: -40°C ~ 105°C (TJ)

Mounting type: Surface mount type

Package/housing: 180-VFBGA, FCBGA bare pad

Supplier Package: 180-FCBGA (15x15)

Basic product number: IWR6843

Applications:

• Industrial sensors for measuring distance, speed and Angle

• Building Automation

• Displacement sensing

• Hand gestures

• Robot

• Traffic monitoring

• Proximity and location sensing

• Security and monitoring

• Factory automation safety protection device

• Head count

• Motion detection

• Placeholder detection
