Mingjiada Corporation has been supplying and recycling TI LP8869QPWPRQ1 High Integration 3-channel 120mA Automotive LED Driver for a long time, brand new and original, quality assurance!

Description of LP8869QPWPRQ1

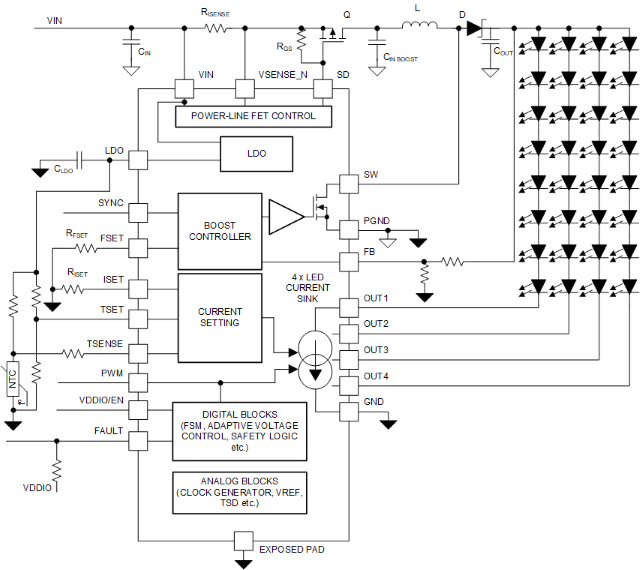

The LP8869QPWPRQ1 is a highly integrated, low EMI, easy-to-use LED driver with a DC-DC converter that supports boost and SEPIC mode operation. The device is available with four or three high-precision current sinks that can be combined for higher current capability.

The DC-DC converters feature adaptive output voltage control based on the LED forward voltage. This feature minimises power consumption by adjusting the voltage to a low enough level under all conditions. To reduce EMI, the DC-DC supports spread spectrum of the switching frequency and external synchronisation of dedicated pins.The LP886x-Q1 uses a wide range of adjustable frequencies to avoid interference in sensitive frequency bands.

Features

AEC-Q100 certified for automotive applications:

Device temperature class 1: -40°C to +125°C, TA

Supports functional safety

Documentation is available to assist in the design of functionally safe systems

3-channel and 4-channel 120 mA current sinks

Dimming ratios up to 10 000:1 at 100 Hz

Current match 1% (typical)

Up to 120 mA per channel LED string

Outputs can be combined externally for higher current per string

Integrated boost and SEPIC converter for LED string powering

Input voltage operating range 4.5 V to 40 V

Output voltages up to 45 V

Integrated 3.3-A switching FET

Switching frequency 300 kHz to 2.2 MHz

Switching synchronous inputs

Spread spectrum for reduced EMI

Fault detection and protection

Fault outputs

Input voltage OVP, UVLO and OCP

Booster Block SW OVP and Output OVP

Open and short LED fault detection

Power line FET control for battery bus protection

Automatic LED current reduction via external temperature sensor

Thermal shutdown

Applications

- Backlighting for:

- Automotive infotainment systems

- Automotive dashboards

- Smart Mirrors

- Horizontal View Display (HUD)
