(Supplied, recycled) i.MX RT1064 microcontroller MIMXRT1064DVL6B (NXP) 32-bit Cortex-M7 core 600MHz 4MB FLASH 196-MAPBGA.

Product Details:

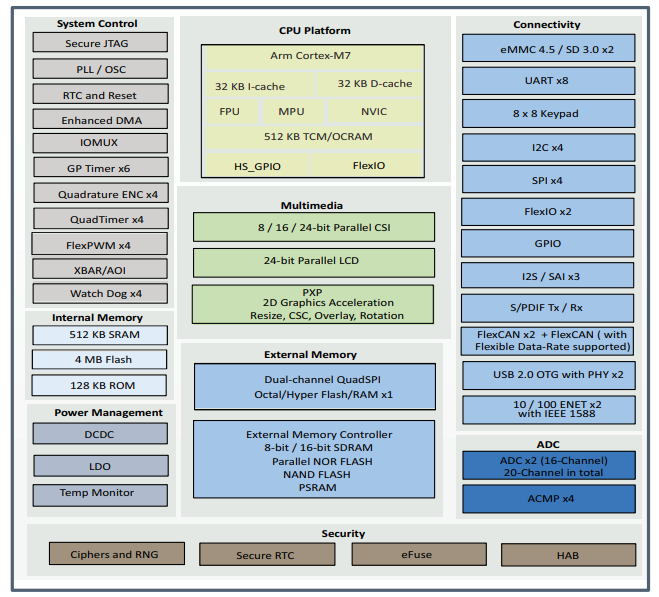

The MIMXRT1064DVL6B microcontroller uses NXP's advanced 32-bit ARM® Cortex®-M7 core. The core operates at speeds of up to 600MHz, providing excellent CPU performance and the best real-time response. The i.MX RT1064 processor has 4MB of on-chip flash memory and 1MB of on-chip RAM. The 512KB SRAM can be flexibly configured as TCM or universal on-chip RAM, while the other 512KB SRAM is universal on-chip RAM.

The I.MKRT1064 combines an advanced power management module with DC-DC and LDO devices to reduce the complexity of external power supplies and simplify power sequencing. The i.MX RT1064 features a variety of memory interfaces, including SDRAM, RAW NAND flash, NOR flash, SD/eMMC, and quad SPI. A variety of other interfaces are available to connect peripherals such as WLAN, Bluetooth™, GPS, display and camera sensors. The i.MX RT1064 features a wealth of audio and video features, including LCD display, basic 2D graphics, camera interface, SPDIF and I2S audio interface. The iMX RT1064 features analog interfaces such as ADC, ACMP and TSC. The i.MX RT1064 is particularly suitable for applications such as industrial human machine interface (HMI), motor control and home appliances.

Features:

• High performance real-time processing

Up to 600MHz Cortex-M7 (50% faster than existing M7 products)

2Ons Interrupt delay

Up to 512KB TCM + 512KB SRAM

4MB on-chip flash memory

• Highly integrated

4MB embedded flash memory

High security is achieved with AES-128, HAB, and instant QSPI flash decryption

2D graphics acceleration engine

Parallel camera sensor interface

Up to WXGA LCD Display controller (1366x768)

Features three 12S audio interfaces for multi-channel high-performance audio

• Low BOM cost

Prices are competitive - starting at $4.68 (10k RSL)

Fully integrated PMIC (with DC-DC regulator)

Low cost, 10x10 BGA package for 4-layer PCB design

Memory interface

• Easy to use

MCU customers can take advantage of their current toolchains (MCUXpresso, IAR, Keil)

Fast and easy prototyping and development with NXP FreeRTOS, SDK, Arm mbed and the global Arm ecosystem

Single voltage input simplifies power circuit design

Scalable to Kinetis and i.MX products

Applications:

Voice and audio

Conference voice systems

Home audio

Professional microphones

Guitar pedals

Audio tuners

Smart home and building automation

Smart appliances

HVAC climate control

Thermostats

Security

IoT gateways

Industrial computing

EBS

PLCs

Test and measurement

Assembly line robotics

Motor control and power conversion

3D printers

UAVs

Motor drive inverters
