Mingjiada Electronic-Supply [Broadcom] ExpressFabric Switches PEX88T32 32-Lane PCIe Gen 4.0 Retimer

Mingjiada Electronic-Supply [Broadcom] ExpressFabric Switches PEX88T32 32-Lane PCIe Gen 4.0 Retimer

Source:our siteTime:2024-12-27Views:

Mingjiada Electronic——Supply [Broadcom] ExpressFabric Switches PEX88T32 32-Lane PCIe Gen 4.0 RetimerPEX88T32: 32 bi-directional PCIe lanes, PCIe Gen 4.0 RetimerPart Number: PEX88T32Package: BGAType: ExpressFabric Switches——32-Lane PCIe Gen 4.0 Ret…

Mingjiada Electronic——Supply [Broadcom] ExpressFabric Switches PEX88T32 32-Lane PCIe Gen 4.0 Retimer

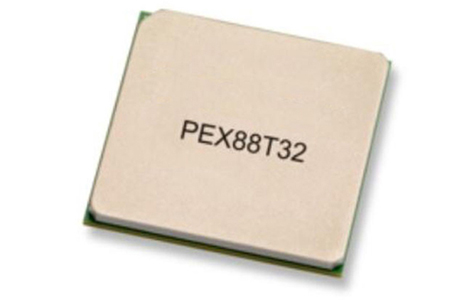

PEX88T32: 32 bi-directional PCIe lanes, PCIe Gen 4.0 Retimer

Part Number: PEX88T32

Package: BGA

Type: ExpressFabric Switches——32-Lane PCIe Gen 4.0 Retimer


PEX88T32 - Key Features:

• PCIe 1.0, 2.0, 3.0, and 4.0 support

• 32 bi-directional PCIe lanes: 16 lanes up and 16 lanes down

• The Industry’s best SerDes technology with extended reach (up to 39 dB loss)

− SerDes field-tested by Broadcom in various products

• Low-power SerDes (under 90 mW per lane)

• Configurable with SBR

• Cut-through packet latency of 105 ns

• DPC/eDPC support, Read tracking for surprise removal

• SSC isolation, SRIS, SRNS, and Common Clock support

• Each lane is independent of other lanes

• No reference resistors, NV RAM is programmed during test

• CTLE, 9-tap DFE equalizer to support up to 39 dB channel loss

• CDR, pre/post-cursor settings

• Lane margining and loop-back supported

• Exceeds 20 dB normal channel loss handling set by PCI-SIG

• Handles 39 dB (spec = 28 dB) loss with clean channel (5 to 11 dB margin)

• 800 mV PRBS-23 BERT + 28 dB CEM Channel + Package Loss

• Field proven debug and bring-up tools

• IBIS-AMI Models, Arctic SerDes Eyescope and other debug tools

• Reliability, availability, serviceability VisionPAK – SerDes Eye capture

• Very high jitter and interference tolerance (100% over PCIe spec)
