Product Details:

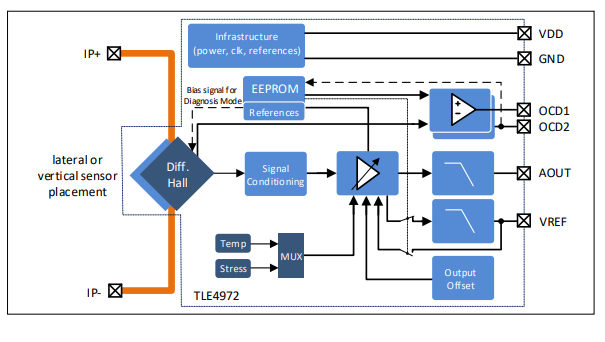

The Infineon TLE4972AE35S5XUMA1 magnetic coreless current sensor integrates an analog sensor signal proportional to the measured current and two fast overcurrent detection pins. The TLE4972 uses a differential measurement principle to effectively resist stray fields, making it ideal for current EMC sensitivity measurements.

Thanks to proprietary digital stress and temperature compensation and powerful Hall technology, the Infineon TLE4972 digitally assisted simulator provides excellent stability over the entire temperature and service life range. The coreless sensor design of magnetic sensors avoids adverse effects such as saturation and hysteresis, which typically come from sensors that use an iron core to obtain magnetic flux density.

The sensor has been developed according to the functional safety standard ISO 26262 and is equipped with internal self-diagnostic capabilities.

Features:

• High accuracy, scalable DC and AC current detection

• Extremely low sensitivity error over the entire temperature and service life range

• Excellent offset stability over the entire temperature and service life range

• High bandwidth provides fast response time and low phase delay

• Differential sensor principle ensures excellent stray magnetic field suppression

• Two independent Fast overcurrent detection (OCD) pins with configurable thresholds for a fast protection mechanism for power circuits (typical value 0.7µs)

• Full scale up to 31mT for high current applications

• Small size for low insertion resistance and low power loss

• Configurable analog output operating modes (fully differential, semi-differential or single-ended, unidirectional and bidirectional with or without scale)

• Supply voltage: 3.1V to 3.5V

• ISO 26262 Independent Safety Elements (SEooC) with safety requirements up to ASIL B

• Different packaging solutions enable optimal system integration for different wiring schemes

Applications:

Automobile electric drive

Auxiliary drive

Current monitoring

Overload and overcurrent detection

Automotive powertrain

Battery master switch

Onboard charger
