Product Introduction:

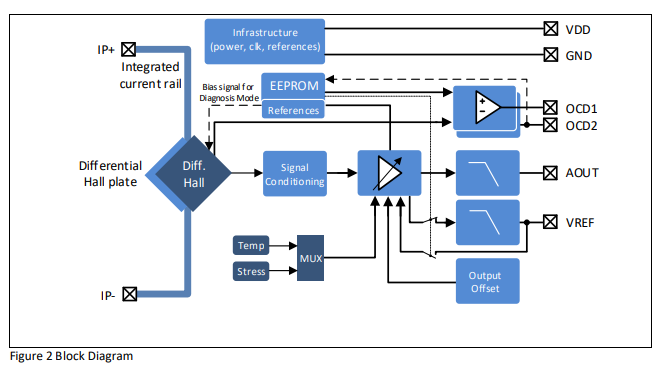

The TLI4971 is a high-precision current sensor for AC and DC measurements. The device has an analog interface and two fast overcurrent detection outputs. These devices support protection of the power supply circuit. Current isolation is provided due to the principle of magnetic field sensing. Infineon's monolithic Hall technology enables accurate, highly linear current measurement up to 120A at full scale. Infineon's open-loop, sensorless approach is, in principle, free of the common negative effects of saturation and hysteresis that are common in kernel-based sensor technologies. The intelligent current guide design (double U-shape) combined with differential signal detection enables the current sensor to reliably withstand stray fields.

Features and Benefits:

• Integrated current track with typical 220µΩ insertion resistance for ultra-low power consumption

• The parasitic inductance of the integrated current rail is less than 1nH, enabling a wide-band gap design

• 240kHz bandwidth for a wide range of applications

• 8x8mm dimensions

• Very low temperature sensitivity error

• Current functional isolation up to 1150V

• VISO 3500V RMS mechanism performs 60-second type tests according to UL1577

• Principle of differential sensing

• Two independent ultrafast overcurrent detection outputs

TLI4971A025T5UE0001XUMA1 Technical Specifications:

Used for measurement: AC/DC

Sensor type: Hall effect, open loop

Current - Detection: 25A

Number of channels: 1

Output: ratio, voltage

Sensitivity: 48mV/A

Frequency: DC ~ 240kHz

Linearity: ±2.25%

Accuracy: -

Voltage - Power supply: 3.1V ~ 3.5V

Response time: 250ns

Current - Power supply (Max.) : 25mA

Operating temperature: -40°C ~ 105°C

Polarization: unidirectional

Mounting type: Surface mount type

Package/housing: 8-PowerTDFN

Supplier device package: PG-TISON-8-5

Target application

The TLI4971 is suitable for AC and DC measurement applications:

• Electric drive

• Universal inverter

• Photovoltaic inverter

• Charger

• Current monitoring

• Overload and overcurrent detection
