Product Details:

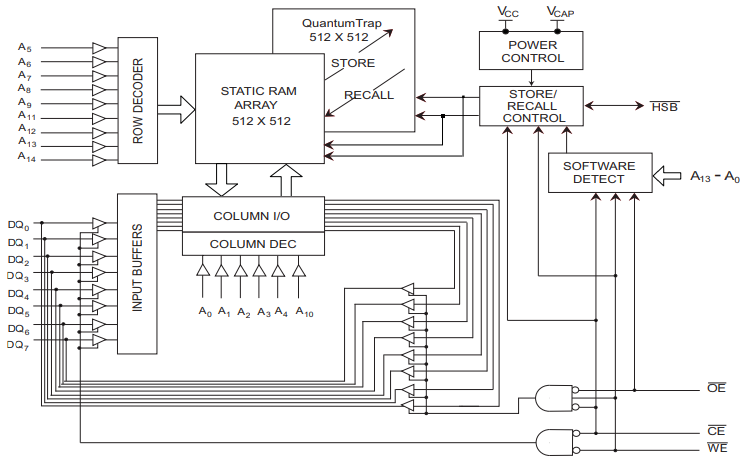

The CY14E256LA is a fast static RAM with a non-volatile element in each storage cell. The memory is organized as 32kb. The embedded non-volatile element combines QuantumTrap technology to produce the most reliable non-volatile memory in the world. SRAM provides unlimited read and write cycles, while independent non-volatile data resides in highly reliable QuantumTrap units. Data transfer from SRAM to non-volatile components (STORE operation) occurs automatically in case of power failure. After power-on, data is recovered from non-volatile memory to SRAM (RECALL operation). Storage and recall operations can also be used under software control.

Features:

• 25ns and 45ns access time

• Internal organization 32k × 8 (CY14E256LA)

• Automatic shutdown storage with only a small capacitor

• Store to QuantumTrap non-volatile elements that are started by software, device pins, or automatically stored in case of power failure

• Recall of SRAM started by software or power-on

• Unlimited read, write, and callback cycles

• 1 million storage cycles to QuantumTrap

• Data retention for 20 years

• Single 5v + 10% operation

• Industrial temperature

• 32-pin small profile integrated circuit (SOIC) package

• Lead-free and Restricted Hazardous Substances (RoHS) compliant

CY14E256LA-SZ45XI Technical parameters:

Memory type: non-volatile

Memory format: NVSRAM

Technology: NVSRAM (Non-Volatile SRAM)

Storage capacity: 256Kb

Memory organization: 32K x 8

Memory interface: parallel

Write cycle time - word, page: 45ns

Access time: 45 ns

Voltage - Power supply: 4.5V ~ 5.5V

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/housing: 32-SOIC (0.295", 7.50mm wide)

Supplier device package: 32-SOIC
