Product Details:

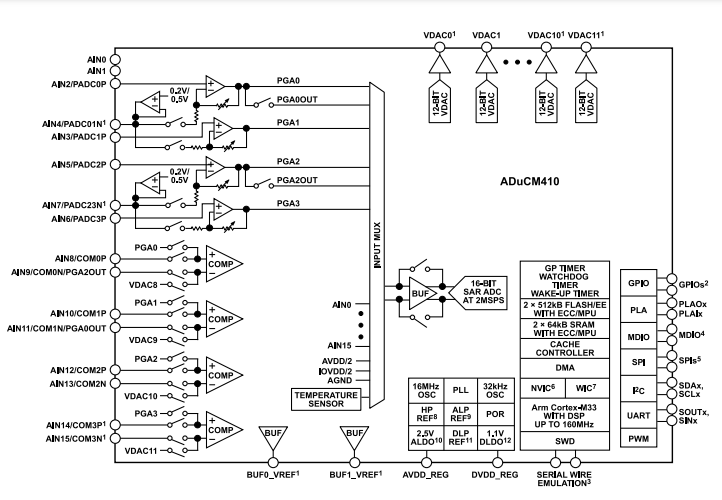

The ADuCM410 is a fully integrated, single-package precision analog microcontroller that includes high-performance analog peripherals. The device also includes digital peripherals (controlled by a 160MHz Arm® Cortex™-M33 processor) and integrated flash memory (for code and data). The analog-to-digital converter (ADC) on the ADuCM410 provides 16-bit, 2 MSPS data acquisition with up to 16 input pins. The pin can be programmed for single-ended or differential operation. They feature programmable gain amplifiers (PGA) or transimpedance amplifiers (TIA) for voltage and current measurement. In addition, strip temperature and supply voltage can be measured.

ADUCM410BCBZ Technical parameters:

Core processor: ARM® Cortex®-M33

Kernel specification: 32-bit single-core

Speed: 160MHz

Connection capability: I²C, SPI, UART/USART

Peripheral: DMA, POR, PWM, WDT

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 128K x 8

Voltage - supply (Vcc/Vdd) : 2.85V ~ 3.6V

Data converter: A/D 16x16b SAR; D/A 12x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C

Mounting type: Surface mount type

Package/housing: 64-UFBGA, WLCSP

Supplier Device Package: 64-WLCSP (3.46x3.46)

ADUCM410BBCZ Technical parameters:

Core processor: ARM® Cortex®-M33

Kernel specification: 32-bit single-core

Speed: 160MHz

Connection capability: I²C, SPI, UART/USART

Peripheral: DMA, POR, PWM, WDT

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 128K x 8

Voltage - supply (Vcc/Vdd) : 2.85V ~ 3.6V

Data converter: A/D 16x16b SAR; D/A 12x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C

Mounting type: Surface mount type

Package/case: 81-VFBGA, CSPBGA

Supplier Package: 81-CSPBGA (5x5)

Applications:

• Fiber optic network 100 Gbps/200 Gbps/400 Gbps and higher frequency modules

• Industrial control

• Automation

• Instrumentation system
