LCMXO3D-9400ZC-3SG72C Overview:

MachXO3D™ FPGas are the next generation of low-density PLDS, including enhanced security features and on-chip dual-boot flash memory. MachXO3D FPGA features hardware trusted root and dual-boot capabilities for enhanced security control applications. With MachXO3D, it's easy to achieve comprehensive, flexible and robust hardware security throughout the entire product lifecycle. This customizable approach enables the implementation of a variety of system architectures.

The MachXO3D FPGA has a number of powerful security features, such as encryption detection and preventing malicious code from starting. The configuration flash memory on the device supports dual boot and requires no external memory. The enhanced device configuration engine ensures that only FPGA configurations from trusted sources can be installed. MachXO3D devices also provide flexible, reliable and secure configurations via on-chip flash memory with encryption and authentication options.

MachXO3D complies with NIST SP 800 193 Platform Firmware Resilience (PFR) guidelines. MachXO3D is available in two performance levels: Ultra-low power (ZC) or High performance (HC).

Features:

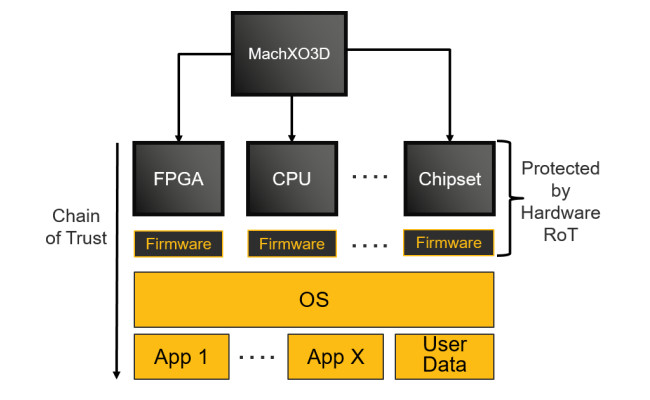

• Easy hardware security by integrating "trusted roots" into the platform's start-stop devices

Support safety throughout the entire product lifecycle, including equipment manufacturing and shipping, platform manufacturing, installation, operation, and shutdown

Comprehensive protection against threats by providing data security, device security, data authentication, design security, and brand protection

The combination of programmable logic and secure dual-boot configuration blocks provides high flexibility during design implementation and security updates after the device is deployed

• Provides strong security and pre-validated encryption in compliance with NIST SP 800-193 PFR and CAVP guidelines to protect non-volatile memory, detect malicious code, and recover in the event of damage

LCMXO3D-9400ZC-3SG72C Technical parameters:

Series: MachXO3D

LAB/CLB number: 1175

Number of logical elements/units: 9400

Total RAM bits: 442368

Number of I/ OS: 58

Voltage - Power supply: 2.375V ~ 3.465V

Mounting type: Surface mount type

Operating temperature: 0°C ~ 85°C (TJ)

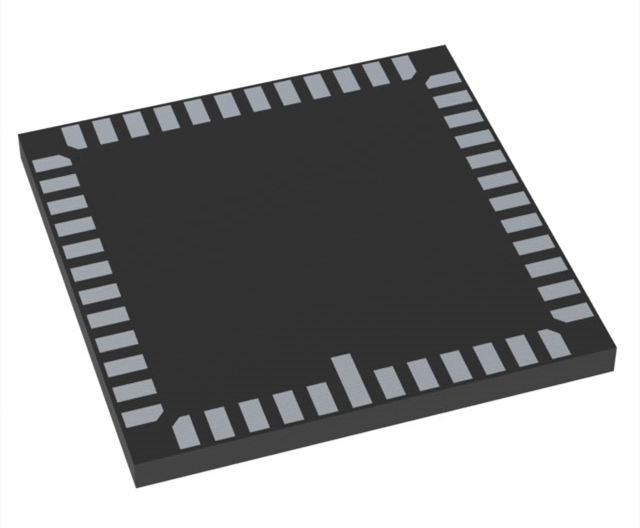

Package/housing: 72-VFQFN bare pad

Supplier Package: 72-QFN (10x10)

Basic product number: LCMXO3

Applications:

• Secure boot and trusted root

• Consumer electronics

• Computing and storage

• Wireless communication

• Industrial control systems

• Automotive Systems
