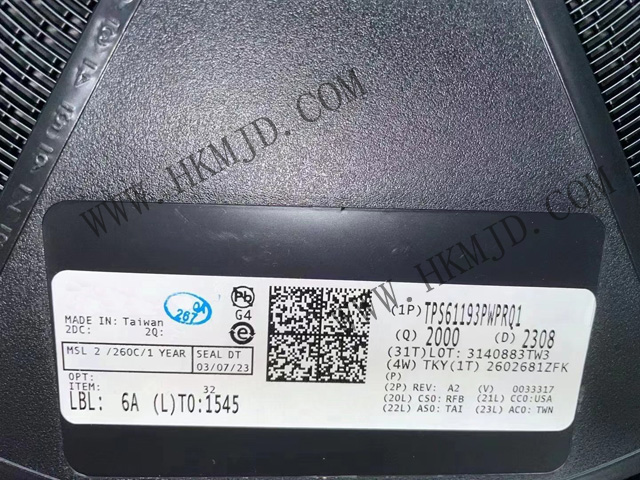

Shenzhen Mingjiada Electronics Co., Ltd. new and original [distribution TI] supply TPS61193PWPRQ1 low EMI, high-performance 3-channel LED driver for automotive lighting

TPS61193PWPRQ1 Product Description:

The TPS61193-Q1 is a low EMI and easy to use automotive class high efficiency LED driver with an integrated DC-DC converter. The device features three high-precision current traps that can be used in combination to increase current capability.

The DC-DC converters provide adaptive output voltage control based on the LED current trap margin voltage. This feature allows the voltage to be regulated to the lowest level that is required under all conditions, thus reducing power consumption even more. To reduce EMI, the DC-DC converters support frequency spreading for the switching frequency as well as external synchronisation using dedicated pins. With a wide range of adjustable frequencies, the TPS61193-Q1 is able to avoid interference from the AM radio band.

The TPS61193-Q1 has an input voltage range of 4.5V to 40V and supports automotive start/stop and load sags.

TPS61193-Q1 features:

- Meets the requirements of automotive applications

- With the following results in accordance with AEC-Q100:

- Device temperature level 1: -40°C to +125°C ambient operating temperature range

- Input voltage operating range: 4.5V to 40V

- Three-way high accuracy current trap

- Current matching to 1% (typical)

- Light emitting diode (LED) string currents up to 100mA/channel

- Outputs can be combined externally to increase current capability

- Dimming ratio up to 10000:1 at 100Hz

- Integrated boost/SEPIC converter for LED string power supply

- Output voltages up to 45V

- Switching frequency: 300kHz to 2.2MHz

- Switching synchronous input

- Extended spectrum for electromagnetic interference (EMI) reduction

- Extensive fault detection functions Features

- Fault outputs

- Input voltage overvoltage protection (OVP), undervoltage lockout (UVLO) and overcurrent protection (OCP)

- Open and short-circuit LED fault detection

- Thermal shutdown

- Minimised external component count

- Backlighting for applications such as

- Automotive infotainment systems

- Automotive dashboards

- Intelligent car mirrors

- Head-up display (HUD)

- Central Information Display (CID)

- Audio Video Navigation (AVN)
