Shenzhen Mingjiada Electronics Co., Ltd. [TI Distributor] for TPS7A5201WQRTKRQ1 TPS7A52-Q1 Automotive 2A, low input voltage (1.1V), low noise, high accuracy, ultra-low dropout voltage (LDO) regulator

Product Description:

The TPS7A52-Q1 device is a low-noise (4.4µVRMS), low dropout linear regulator (LDO) that provides 2A pull current with a maximum dropout voltage of only 115mV. The device's output voltage is adjustable via an external resistive divider over a range of 0.8V to 5.2V.

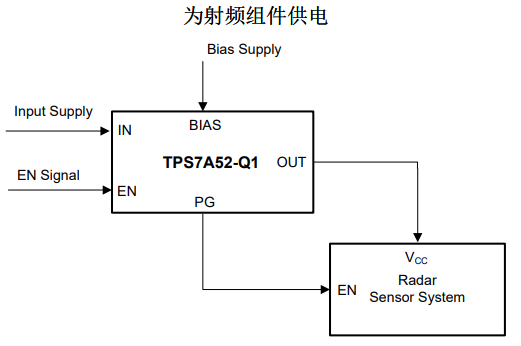

The TPS7A52-Q1 combines low noise (4.4µVRMS), high PSRR and high output current capability, making it ideal for powering noise-sensitive components in applications such as radar power and infotainment. The device's excellent performance suppresses phase noise and clock jitter from the power supply, making it ideal for powering RF amplifiers, radar sensors and chipsets. RF amplifiers in particular benefit from the device's high performance and 5.0V output capability.

For digital loads requiring operation at low input voltages and low output (LILO) voltages, such as Application Specific Integrated Circuits (ASICs), Field Programmable Gate Arrays (FPGAs) and Digital Signal Processors (DSPs), the TPS7A52-Q1's very high accuracy (up to 1% over the load and temperature range), remote sensing, excellent transient performance and soft start capability ensure excellent system performance.

The versatility of the TPS7A52-Q1 device makes it the component of choice for many demanding applications.

Device TPS7A52-Q1 features:

- Compliant with standards for automotive applications

- Compliant with AEC-Q100 standard for automotive applications:

- Temperature class 1: -40°C ≤ TA ≤ +125°C

- HBM ESD classification class 2

- CDM ESD classification class C4A

- Extended junction temperature (TJ) range: -40°C to +150°C

- Input voltage range:

- Unbiased: 1.4V to 6.5V

- Biased: 1.1V to 6.5V

- Adjustable output voltage range: 0.8V to 5.2V

- Low voltage drop: 115mV (max) at 2A current (with bias)

- Output voltage noise: 4.4µVRMS

- Bias accuracy of 1% max over line, load and temperature range

- Power supply ripple rejection:

- 40dB at 500kHz

- Adjustable soft-start surge control

- Open drain power normal (PG) output

- Package:

- 3.5mm × 3.5mm 20-pin VQFN

- 4mm × 4mm 20-pin VQFNP with wettable sides and high CTE (12ppm/°C) plastic package

Device TPS7A52-Q1 Applications:

- Telematics control units

- Infotainment systems and instrument clusters

- High-speed interfaces (PLL and VCO)
