Shenzhen Mingjiada Electronics Co., Ltd. supplies 12-bit ADC AD7476AWYRMZ 1 MSPS, low power A/D converter in MSOP package, original stock, quality assurance, welcome to consult!

AD7476AWYRMZ Device Overview:

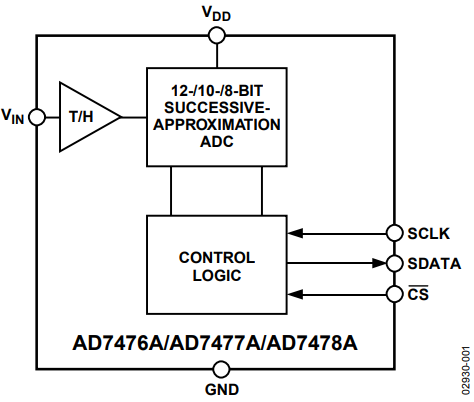

The AD7477A/AD7478A are 12-bit, 10-bit and 8-bit high-speed, low-power, successive approximation analog-to-digital converters (ADCs), respectively. These devices operate from a single supply of 2.35 V to 5.25 V and have throughput rates of up to 1 MSPS. These parts contain a low-noise, wide-bandwidth track-and-hold amplifier and can handle input frequencies in excess of 13 MHz. The conversion process and data acquisition is controlled using CS and a serial clock, enabling these devices to be interfaced with a microprocessor or DSP. The input signal is sampled at the falling edge of CS and conversion is initiated at this point. There is no pipeline delay in these devices. the AD7476A/AD7477A/AD7478A use advanced design techniques to achieve low power consumption at high throughput rates. The reference for this device is taken internally from VDD in order to provide the widest dynamic input range for the ADC. The analog input range for this part is therefore 0 V to VDD. The conversion rate is determined by SCLK.

Features:

Fast throughput rate: 1 MSPS

Specified VDD from 2.35V to 5.25V

Low power consumption

3.6 mW for 1 MSPS at 3 V supply

12.5 mW for 1 MSPS from a 5 V supply

Wide input bandwidth

71 dB SNR at 100 kHz input frequency

Flexible power/serial clock speed management

No pipeline delay

High-speed serial interface

SPI/QSPI™/MICROWIRE/DSP compatible

Standby mode: 1 µA max

8-lead MSOP

Compliant with requirements for automotive applications

Applications:

Battery-powered systems

Personal digital assistants

Medical devices

Mobile communications

Instrumentation and control systems

Data acquisition systems

High-speed modems

Optical sensors
