Intel [CPLD] EPM1270F256C5N complex programmable logic device IC

Intel [CPLD] EPM1270F256C5N complex programmable logic device IC

Source:本站Time:2023-05-24Views:

Device introduction:The EPM1270F256C5N is an (INTEL)MAXII series fast-starting non-volatile CPLD based on a 0.18-m, six-layer metallic flash memory process with a density of 1270 logic elements (LE)(980 equivalent macro units) and 8Kbit non-volatile s…

Device introduction:

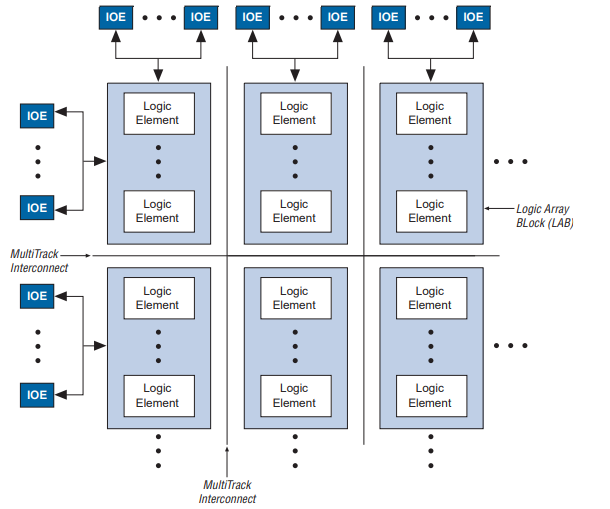

The EPM1270F256C5N is an (INTEL)MAX®II series fast-starting non-volatile CPLD based on a 0.18-µm, six-layer metallic flash memory process with a density of 1270 logic elements (LE)(980 equivalent macro units) and 8Kbit non-volatile storage. MAX II devices offer high I/O counts, fast performance, and reliable assembly compared to other CPLD architectures. MAX II devices feature a MultiVolt kernel, user flash memory (UFM) block, and enhanced in-system programmability (ISP) designed to reduce cost and power consumption while providing programmable solutions for applications such as bus bridging, I/O expansion, power-on reset (POR) and sequence control, and device configuration control.




Technical parameters:

Programmable type: Programmable within the system

Delay tpd(1) Maximum value: 6.2ns

Supply voltage - Internal: 2.5V, 3.3V

Logical elements/blocks: 1270

Number of macro cells: 980

Number of I/ OS: 212

Operating temperature: 0°C ~ 85°C (TJ)

Mounting type: surface mount type

Package/case: 256-BGA

Supplier Device Package: 256-FBGA (17x17)

Basic product number: EPM1270


MAX® II CPLD devices are designed for:

I/O scaling

Interface bridging

Power management control
