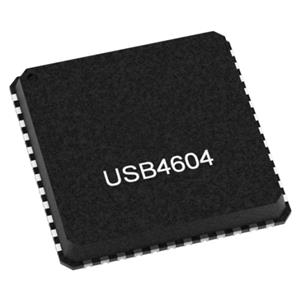

The USB4604I-1080HN is a USB 2.0 high-speed interface integrated circuit launched by Microchip, supporting 4-port expansion and suitable for USB 2.0 hub controller designs. The following are the key features:

A hub controller IC with four downstream ports

The upstream port can be selected between HSIC or USB 2.0

USB-IF battery charger version 1.2 supports both uplink and downlink ports (DCP, CDP, SDP).

Battery charging support for Apple devices

FlexConnect: Downstream port 1 can exchange with upstream port, allowing devices with master control capabilities to control other devices on the hub

Support for USB to IC/SPI bridge endpoints

USB link power management (LPM) support

The suspend pin that sends a remote wake-up indication to the host

Frame Start (SOF) sync the clock output pin

Vendor Specific Messaging (VSM) support

Enhanced OEM configuration options are provided from ports via OTP or SMBus

The USB4604I-1080HN fully complies with the USB 2.0 specification, the USB 2.0 Link Power Management Appendix, the High-Speed Inter-Chip (HSIC) USB Electrical Specification Revision 1.0, and will be connected to the upstream port as a full-speed hub or full-speed/high-speed hub.

Typical applications

The USB4604I-1080HN is suitable for USB hubs, FlexConnect expansion modules, or as an interface controller for larger system components.
