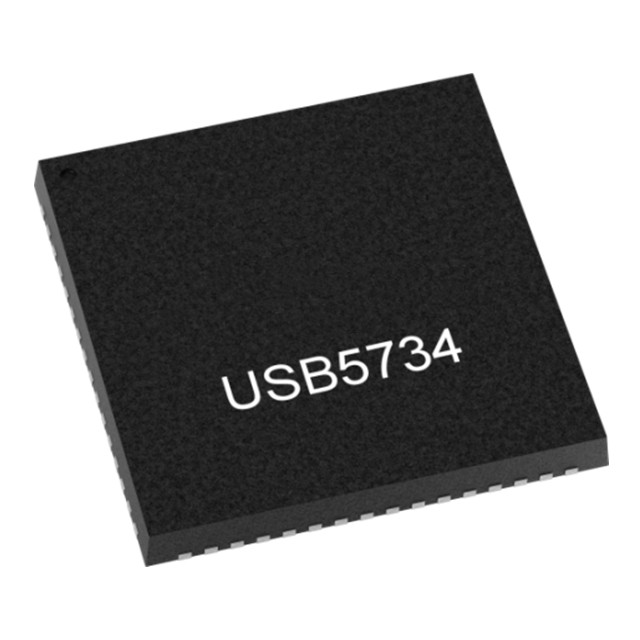

The USB5734/MR Is a 4-port, ultra-high speed (SS)/ High speed (HS), low power, configurable product that is fully compliant with the USB3.2 Gen 1 specification. The USB5734/MR Also supports full-speed (FS) and low-speed (LS) USB signals, fully covering all defined USB operation speeds. The new ultra-high-speed hub operates in parallel with the USB2.0 controller, so the 5 Gbps ultra-high-speed data transmission is not affected by the slower USB2.0 traffic.

Key features

Four downstream USB3.2 Gen1/2.0 ports

Integrated hub Function Controller (HFC) supporting I/O bridging and FlexConnect

I/O bridging: Support for USB to I C/UART/SPI/GPIO bridging endpoints

FlexConnect: Host port switching and switching to downstream devices

Battery charging :USB-IF Revision 1.2 supports downstream ports (DCP, CDP, SDP). Synchronous data transmission with 2500mA high-speed charging. Supports charging from a mobile platform that is turned off

Port configuration features: Predefined port Settings - battery charging, non-removable, disabled

Hybrid mode - including IC, FlexConnect and Universal FlexConnect

FlexConnect Mode - Enable FlexConnect through hardware and software control

Port speed mode - Use leds to distinguish between full speed, high speed and ultra-high speed

Port BC mode - Use LED to distinguish BC1.2 from standard USB charging

UART mode - Provides the necessary signals to support the DB9 UART interface

MPLAB Connect Configurator is a tool for enhancing OEM configuration options through one-time programmable (OTP) (8Kbit) or external SPI ROM. Including production line programming tools and on-site update functions.

USB link power management (LPM) support

A 128-bit UUID compliant with IETF RFC 4122

Compatible with Microsoft Windows and other major operating systems

64-pin (9 x 9 mm) SQFN lead-free package, compliant with RoHS standard

Industrial-grade temperature support (-40°C to +85°C

Typical applications

USB5734/MR Is suitable for fields such as industrial control, automotive electronics, and medical equipment that require high-speed data transmission and reliability.
