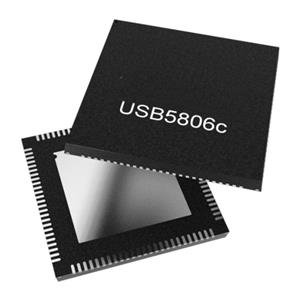

The USB5806C-I/KD is a 6-port SuperSpeed USB 3.1 Gen1 SmartHub controller for USB Type-C™ applications. This device integrates a 2:1 multiplexer and supports reversible USB Type-C™ connections. The USB5806C-I/KD also supports full-speed (FS) and low-speed (LS) USB signal transmission, covering all specified USB operating speeds. The SuperSpeed hub operates in parallel with the USB 2.0 controller to ensure that 5Gbps SuperSpeed data transmission is not affected by slower USB 2.0 traffic.

Basic parameters

Protocol: USB

Function: Hub controller

Interface: I2C, SPI

Standard: USB 3.1

Voltage - Power supply: 1.08V to 1.32V, 3V to 3.6V

Current - Power supply: -

Operating temperature: -40°C to 85°C

Device package: 100-VQFN (12x12)

Core features

Interface type ‌ : supports USB, I2C, SPI, GPIO, and is compatible with USB 3.1 standard ‌

Power management ‌ : Supports USB battery charging specifications (DCP/CDP/SDP), with built-in low-power management function ‌

Flexible configuration ‌ : downstream ports can be interchanged with upstream ports, supporting the host device to control other devices ‌

Package form ‌ : 100-pin VQFN package (12mm×12mm), compliant with RoHS standard

Typical applications

USB5806C-I/KD is suitable for USB Type-C interface devices, supports fast charging function and OEM customized configuration, and complies with USB-IF certification standards.
