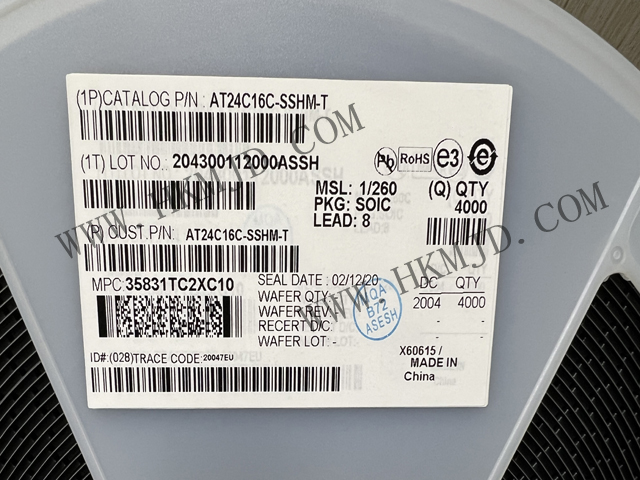

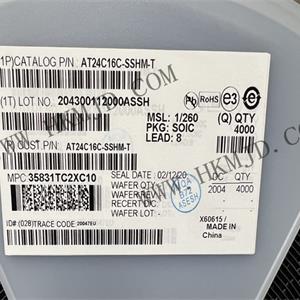

AT24C16C-SSHM-T is 16Kbit 1MHz I²C Serial EEPROM Memory.

Specifications Of AT24C16C-SSHM-T

Memory Type Non-Volatile

Memory Format EEPROM

Technology EEPROM

Memory Size 16Kbit

Memory Organization 2K x 8

Memory Interface I2C

Clock Frequency 1 MHz

Write Cycle Time - Word, Page 5ms

Access Time 550 ns

Voltage - Supply 1.7V ~ 5.5V

Operating Temperature -40°C ~ 85°C (TA)

Features Of AT24C16C-SSHM-T

Low-Voltage Operation:

VCC = 1.7V to 5.5V

Internally Organized as 2,048 x 8 (16K)

Industrial Temperature Range: -40°C to +85°C

I2C-Compatible (Two-Wire) Serial Interface:

100 kHz Standard Mode, 1.7V to 5.5V

400 kHz Fast Mode, 1.7V to 5.5V

1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V

Schmitt Triggers, Filtered Inputs for Noise Suppression

Bidirectional Data Transfer Protocol

Write-Protect Pin for Full Array Hardware Data Protection

Ultra Low Active Current (3 mA maximum) and Standby Current (6μA maximum)

16-Byte Page Write Mode:

Partial page writes allowed

Random and Sequential Read Modes

Self-Timed Write Cycle within 5 ms Maximum

ESD Protection > 4,000V

High Reliability:

Endurance: 1,000,000 write cycles

Data retention: 100 years

RoHS Compliant

Die Sale Options: Wafer Form
