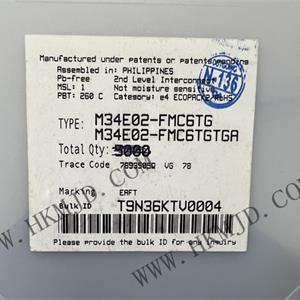

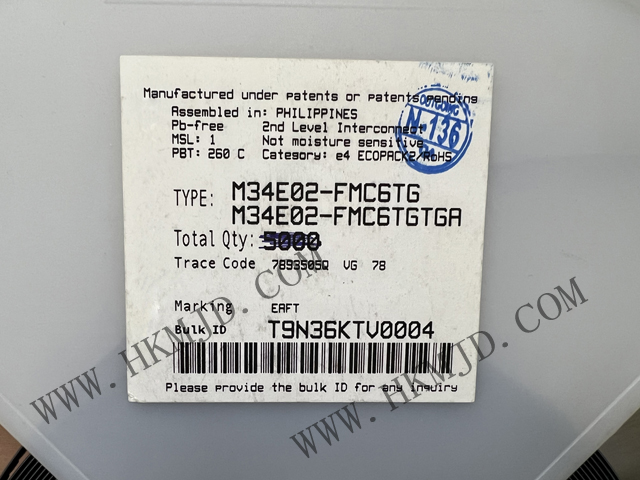

M34E02-FMC6TG: 2Kbit, I²C Bus Serial EEPROM Memory, UFDFPN-8

Overview:

The M34E02-FMC6TG is a 2-Kbit I²C-compatible EEPROM (Electrically Erasable Programmable Read-Only Memory) with a 256 × 8-bit structure.

The M34E02-FMC6TG operates at supply voltages from 1.7 V to 5.5 V, with a clock frequency of 400 kHz (or lower), within an ambient temperature range of -40 °C to +85 °C.

M34E02-FMC6TG Specifications:

Memory Type: Non-volatile

Memory Format: EEPROM

Technology: EEPROM

Storage Capacity: 2Kb

Memory Organisation: 256 × 8

Memory Interface: I²C

Clock Frequency: 400 kHz

Write Cycle Time - Word, Page: 5ms

Access Time: 900 ns

Voltage - Supply: 1.7V to 5.5V

Operating Temperature: -40°C to 85°C (TA)

Mounting Type: Surface Mount

Package/Case: 8-UFDFN Bare Pad

Supplier Device Package: 8-UFDFPN (2x3)

M34E02-FMC6TG Product Features:

2-Kbit EEPROM for DDR1, DDR2 and DDR3 Serial Presence Detect

Backward compatible with M34C02

Permanent and reversible software data protection for lower 128 bytes

Serial interface with 100 kHz and 400 kHz I²C bus

Single supply voltage: 1.7 V to 5.5 V

Byte and page write (up to 16 bytes)

Self-timed write cycle

Noise filtering

- Bus input Schmitt trigger

- Noise filter on bus inputs

Enhanced ESD/latch protection

Over 1 million erase/write cycles

Data retention exceeding 40 years

ECOPACK® (RoHS compliant) package
