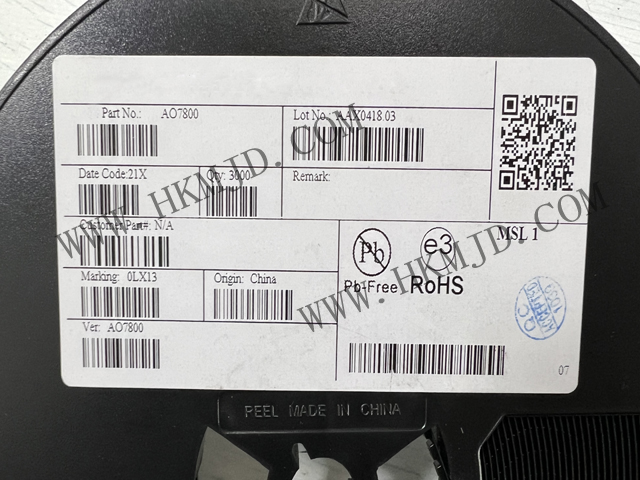

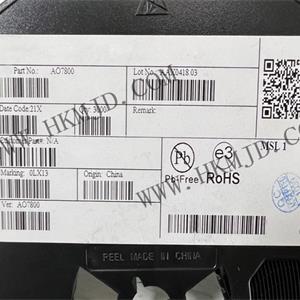

AO7800: Low-voltage MOSFET – 20V, dual N-channel MOSFET transistor, SC70-6L

Model: AO7800

Package: SC70-6L

Type: MOSFET transistor

Overview:

The AO7800 is a 20V, dual N-channel low-voltage MOSFET transistor. Employing advanced trench technology, the AO7800 offers excellent RDS(ON), low gate charge, and a gate voltage as low as 1.8V within a compact SOT363 package. It is suitable for various applications including load switching, low-current inverters, and low-current DC-DC converters.

AO7800 Specifications:

Technology: MOSFET (Metal Oxide Semiconductor)

Configuration: 2 N-channel (dual)

FET Function: Logic-level gate

Drain-Source Voltage (Vdss): 20V

Current at 25°C - Continuous Drain (Id): 900mA

On-Resistance at Various Id, Vgs (Max): 300mΩ @ 900mA, 4.5V

Vgs(th) at different Id (Max): 900mV @ 250µA

Gate Charge (Qg) at different Vgs (Max): 1.9nC @ 4.5V

Input Capacitance (Ciss) at different Vds (Max): 120pF @ 10V

Power - Maximum: 300mW

Operating Temperature: -55°C to 150°C (TJ)

Mounting Type: Surface Mount

Package/Case: 6-TSSOP, SC-88, SOT-363

Supplier Device Package: SC-70-6

AO7800 Product Characteristics:

VDS (V) = 20V

ID = 0.9 A (VGS = 4.5V)

RDS(ON) < 300mW (VGS = 4.5V)

RDS(ON) < 350mW (VGS = 2.5V)

RDS(ON) < 450mW (VGS = 1.8V)
