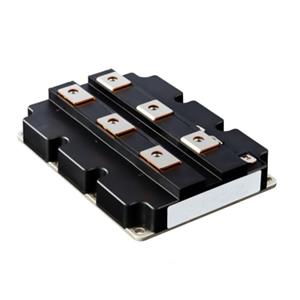

FZ2400R12HE4B9 is 1200V IHMB 190mm single switch IGBT Module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 Diode.

Product Attributes

IGBT Type: Trench Field Stop

Configuration: 3 Independent

Voltage - Collector Emitter Breakdown (Max): 1200 V

Current - Collector (Ic) (Max): 3560 A

Power - Max: 13500 W

Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 2.4kA

Current - Collector Cutoff (Max): 5 mA

Input Capacitance (Cies) @ Vce: 150 nF @ 25 V

Input: Standard

NTC Thermistor: No

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Chassis Mount

Package / Case: Module

Features

Extended operation temperature Tvj op

Low switching losses

Package with CTI > 400

UL recognised
