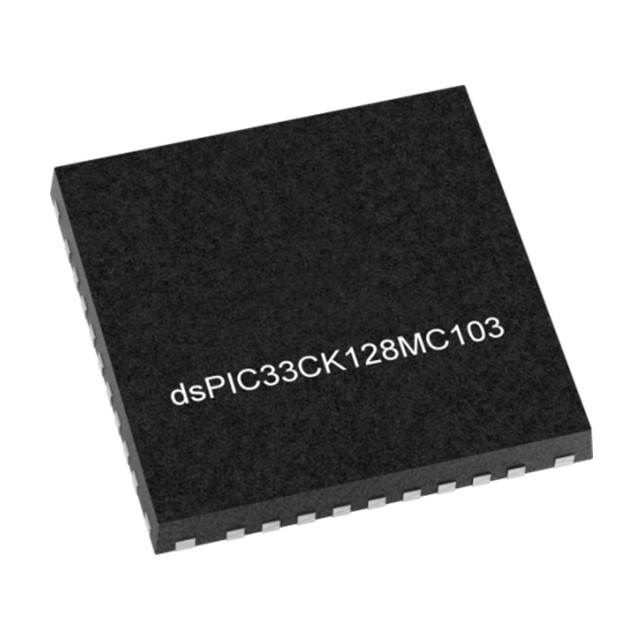

The DSPIC33CK128MC103T-I/M5 16-bit digital signal controller (DSC) is designed to integrate the control attributes of the MCU with the computing power of the DSP in a single core. The DSPIC33CK128MC103T-I/M5 DSC features a 16-bit CPU, high-resolution PWM, CAN flexible data (CAN FD), internal oscillator, low-power management mode, high-speed ADC module, and debugger development support. This 16-bit CPU adopts an improved Harvard architecture, featuring an enhanced instruction set and support for digital signal processing (DSP).

Core parameters

Core processor: dsPIC

Kernel specification: 16 bits

Speed: 100MHz

Connection capability: -

Peripherals: -

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: -

Voltage - Power supply (Vcc/Vdd) : 3V to 3.6V

Data converter: -

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 36-UQFN (5x5)

The DSPIC33CK128MC103T-I/M5 DSC is equipped with an internal flash program memory, which is readable, writable and erasable throughout the entire VDD range during normal operation. This flash memory can store and execute application code.

Typical applications

The DSPIC33CK128MC103T-I/M5 is applicable to fields such as motor control, power management, and industrial automation, for instance, in scenarios like automotive ECUs and smart meters.
