The AM6411 is a new industrial-grade heterogeneous Arm® processor product family from Sitara™, built for industrial applications such as motor drives and programmable logic controllers (PLCs) that require a unique combination of real-time processing and communications and application processing. Cortex®-A53 cores, up to four Cortex-R5F MCUs and one Cortex-M4F MCU into one package.

This deterministic architecture allows the AM6411 to handle tight control loops in servo drives, while peripherals such as FSI, GPMC, PWM, delta-sigma extraction filters and Peripherals such as FSI, GPMC, PWM, Δ-sigma extraction filters and absolute encoder interfaces help to enable the many different architectures in these systems.

Product attributes:

Core processors: ARM®Cortex®-A53, ARM®Cortect®-M5F, ARM®Cortex®-R5F

Cores/bus width: 3 cores, 64-bit

Speed: 800MHz, 400MHz and 400MHz

Co-processor/DSP: Multimedia; NEON™ SIMD

RAM controller: DDR4, LPDDR4

Ethernet: 10/100 Mbps (2), 10/100/1000 Mbps (2)

USB: USB 3.1 (1)

Voltage - input/output: 1.1V, 1.2V, 1.8V, 3.3V

Operating Temperature: -40°C~105°C (TJ)

Security features: AES, ARM TZ, Cryptography, DRBG, ECC, MD5, PKA, Random Number Generator, RSA, Secure Boot, SHA2

Mounting type: Surface mount

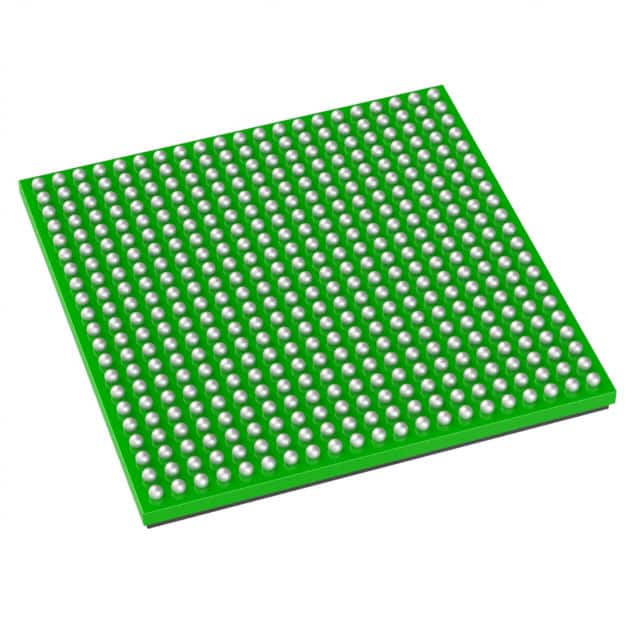

Package/Housing: 441-BFBGA, FCBGA

Supplier device package: 441-FCBGA (17.2x7.2)

Applications:

- Programmable logic controllers (PLCs)

- Motor drives

- Remote I/O

- Industrial robots

- Condition monitoring gateways
