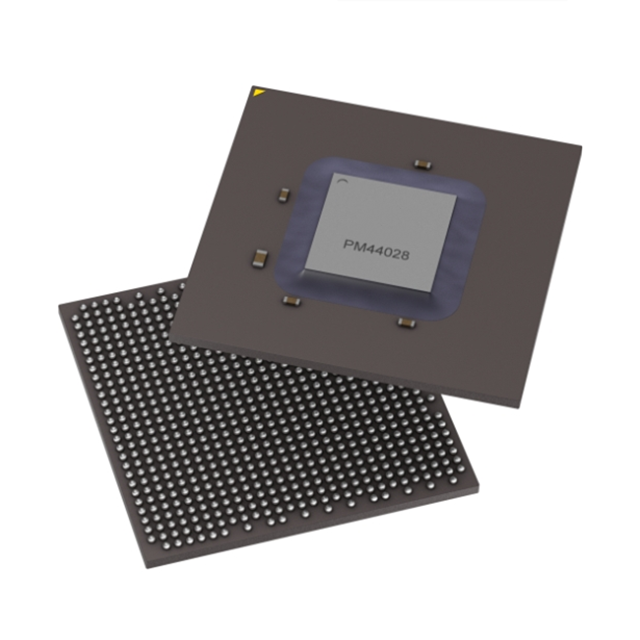

The PM44028B1-F3EI is a high-performance programmable PCIe switch in the Switchtec PSX Gen4 family. It supports 28 channels, 16 ports, 8 virtual switch partitions, 14 non-transparent Bridges (ntb), and hotplug controllers for each port.

The PM44028B1-F3EI switch can provide advanced computing interconnection capabilities for advanced driver assistance systems (ADAS) and significantly reduce power consumption. In addition, this PSX switch features advanced error containment, comprehensive diagnostic and debugging capabilities, end-to-end data integrity protection, high-quality, low-power SERDES, and secure boot image certification.

Performance

• High-reliability PCIe: Powerful error control, hot-swapping and accidental plugging controllers for each port, end-to-end data integrity protection, ECC protection on RAM, high-quality, low-power SERDES

• PSX Software Development Kit (SDK) : Delivering customer-differentiated solutions in areas such as error containment and accidental plugging

Integrated chassis management processor, I/O interface and SDK for chassis management firmware development

• Comprehensive diagnosis and debugging: PCIe generator and analyzer, performance and error counter for each port, multiple loopback modes and real-time eye diagram capture

• Significantly save power consumption, cost and circuit board space, supporting:

Up to 52 ports, 48 NTB and 26 virtual switch partitions

• Flexible x11, x2, x4, x8 and x16 port forks, with no restrictions on configuring ports as uplink or downlink or mapping ports to NTB

• NVMe-MI Chassis Management:

• Integrated NVMe controller

• Supports in-band management of the SES and native NVMe chassis management stack

• Support out-of-band management of MCTP through I2C

A security system solution with startup image authentication

Typical applications

Data center ‌ : for high-density servers, blade servers and shared storage/computing systems. ‌

In the automotive field, ‌ : supports ADAS systems, providing low-latency and low-power distributed computing interconnection. ‌

Storage & computing ‌ : for PCIe SSD cabinets, flash arrays and multi-host architectures. ‌
