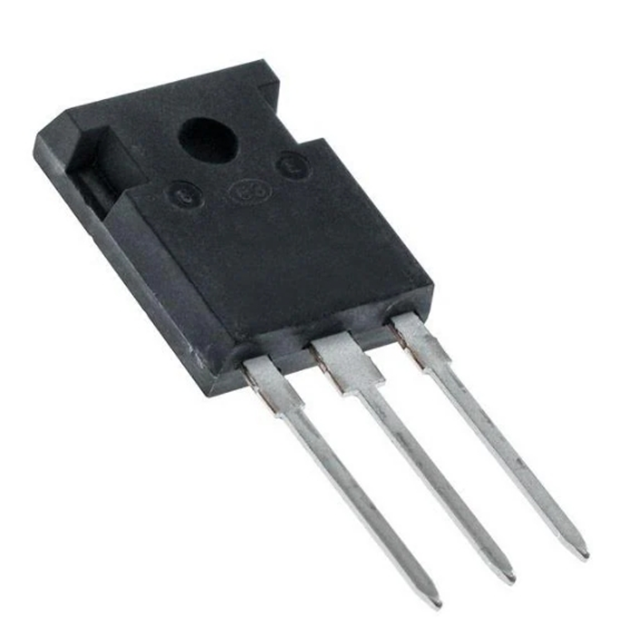

The STGWA30M65DF2AG is A automotive grade groove-gate field cutoff, 650 V, 30 A low loss M series IGBT transistor in a TO-247 long lead package. This device is part of the M series IGBT and represents the ideal balance between the performance and efficiency of the inverter system, where low loss and short-circuit functionality are of crucial importance.

Core parameters

IGBT type: Trench type field-stop

Voltage - collector and emitter breakdown (maximum value) : 650 V

Current - collector (Ic) (maximum value) : 87 A

Current-collector pulse (Icm) : 120 A

Vce(on) (maximum value) at different Vge and Ic: 2V @ 15V, 30A

Power - Maximum: 441 W

Switching energy: 756µJ (on), 1.057mJ (off)

Input type: Standard

Gate charge: 81.6 nC

The Td (on/off) value at 25°C is 21.6ns/138ns

Test conditions: 400V, 30A, 10 ohms, 15V

Reverse recovery time (trr) : 151 ns

Operating temperature: -55°C to 175°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q101

Installation type: Through hole

Package: TO-247 long lead

Application scenarios

The STGWA30M65DF2AG IGBT is mainly used in motor drive, auxiliary load, thermal management and general inverter systems.
