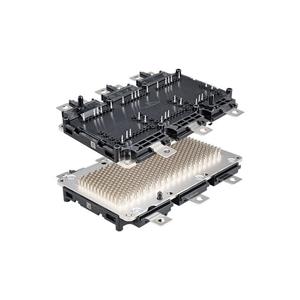

The ECB2R1M12YM3 is a silicon carbide power module launched by Wolfspeed, belonging to the six-unit module (YM series), and is suitable for the automotive electronics field. The following are its core parameters:

Technology: Silicon Carbide (SiC

Configuration: 6 N channels (three-phase inverter)

FET function: -

Drain-source voltage (Vdss) : 1200V (1.2kV

Current at 25°C - continuous drain (Id) : 700A

On-resistance (maximum value) at different ids and Vgs: 2.8 milliohms @ 550A, 15V

Vgs(th) (maximum value) at different ids: 3.6V @ 167mA

Gate charge (Qg) at different Vgs (maximum value) : 1696nC @ 15V

Input capacitance (Ciss) at different Vds (maximum value) : 51300 PPF @ 800V

Power - Maximum value: 1.852kW

Operating temperature: -40°C to 175°C (TJ)

Installation type: Base installation

Packaging/Housing: Module

Performance advantage

Low on-resistance ‌ : Under a 550A load, the on-resistance is only 2.8mΩ, offering higher efficiency.

High power density ‌ : Utilizing the third-generation MOSFET technology, it is smaller in size and suitable for compact design.

Reliability ‌ : Specifically designed for automotive-grade applications, it features industrial-grade temperature resistance.

Applicable scenarios

The ECB2R1M12YM3 is mainly used in high-power scenarios such as inverter systems of new energy vehicles and industrial frequency converters, capable of achieving efficient energy conversion and low-loss operation.
