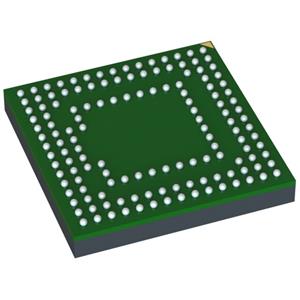

The STM32N645Z0H3Q is a high-performance microcontroller from (ST) that uses an Arm® Cortex®-M55 processor as the core and runs at 800MHz. This MCU has added Arm Helium™ vector processing functionality to its DSP capabilities, featuring a 1GHz clock frequency and up to 600GOPS computing performance.

Main specifications

Core processor: ARM® Cortex®-M55F

Kernel specification: 32-bit

Speed: 800MHz

Connection capabilities: CANbus, Ethernet, I2C, IrDA, LINbus, SAI, SPDIF, SPI, UART/USART, USB

Peripherals: power-off detection/reset, DMA, LCD, POR, PWM, TRNG, WDT

I/O count: 75

Program storage capacity: -

Program memory type: ROMless

EEPROM capacity: -

RAM size: 4.2M x 8

Voltage - Power supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 20x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Package: 142-VFBGA (8x8)

In addition, the STM32N645Z0H3Q is equipped with a NeoChrom™ 2.5D graphics accelerator and an H.264 encoder, supporting 1080p video encoding and real-time streaming. Typical applications include:

drone

Intelligent industry

Smart home

Intelligent agriculture

Personal healthcare
