The STM32N645I0H3Q high-performance microcontroller is based on the Arm® Cortex®-M55 processor with an operating frequency of up to 800 MHz. It is the first CPU to introduce Arm Helium vector processing technology, adding DSP processing capabilities to standard cpus.

The STM32N645I0H3Q features 4.2MB continuous RAM, graphics and multimedia accelerators, a fast serial interface for external memory, a dedicated ISP, and multiple camera interfaces. It mainly has the following technical advantages:

Enhanced UX/ HMI

Rich and responsive graphics

Realize various interactive possibilities

Advanced video and multimedia applications

Transmit video streams via USB/ Ethernet /Wi-Fi/ Bluetooth

Video recording

Seamlessly integrated into the STM32 ecosystem

Powered by TouchGFX

High security

Comply with the latest safety regulations

The key parameters of STM32N645I0H3Q include:

Core processor: ARM® Cortex®-M55F

Kernel specification: 32-bit

Speed: 800MHz

Connection capabilities: CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB

Peripherals: power-off detection/reset, DMA, I2S, LCD, POR, PWM, TRNG, WDT

I/O count: 106

Program storage capacity: -

Program memory type: ROMless

EEPROM capacity: -

RAM size: 4.2M x 8

Voltage - Power supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 20x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

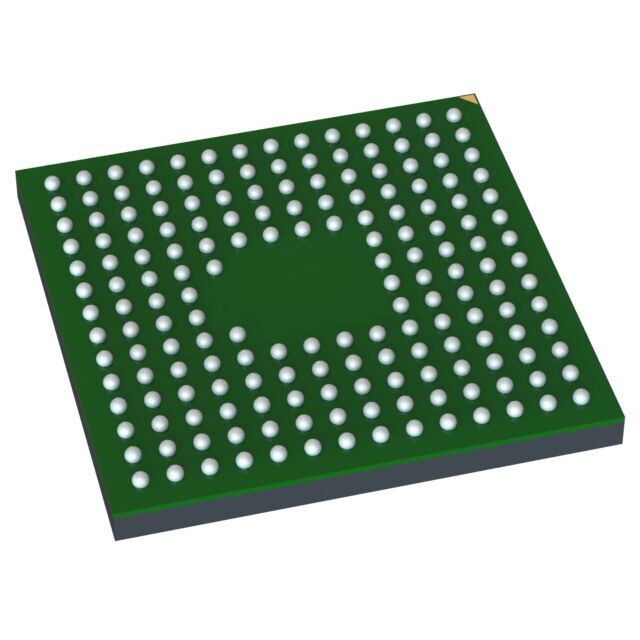

Package: 178-VFBGA (12x12)
