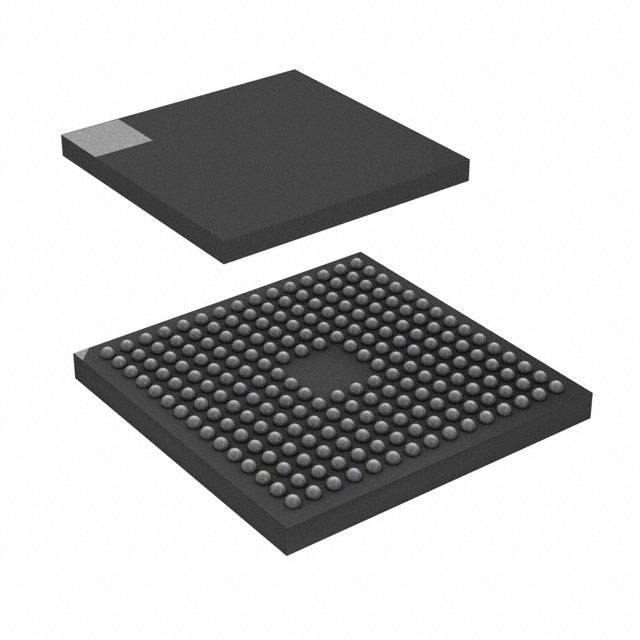

STM32F767NIH7 is based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 216 MHz frequency. The Cortex®-M7 core features a floating point unit (FPU), which supports Arm® double-precision and single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU), which enhances the application security.

Specifications Of STM32F767NIH7

Core: ARM Cortex M7

Program Memory Size: 2 MB

Data Bus Width: 32 bit

ADC Resolution: 12 bit

Maximum Clock Frequency: 200 MHz

Number of I/Os: 159 I/O

Data RAM Size: 532 kB

Supply Voltage - Min: 1.7 V

Supply Voltage - Max: 3.6 V

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 105 C

Analogue Supply Voltage: 2.4 V to 3.6 V

DAC Resolution: 12 bit

Data RAM Type: SRAM

I/O Voltage: 1.7 V to 3.6 V

Interface Type: CAN, Ethernet, I2C, I2S / SPI, SAI, UART / USART, USB OTG FS, USB OTG HS

Moisture Sensitive: Yes

Number of ADC Channels: 24 Channel

Number of Timers/Counters: 15 Timer

Applications Of STM32F767NIH7

Motor drive and application control

Medical equipment

Industrial applications: PLC, inverters, circuit breakers

Printers, and scanners

Alarm systems, video intercom, and HVAC

Home audio appliances

Mobile applications, Internet of Things

Wearable devices: smartwatches
