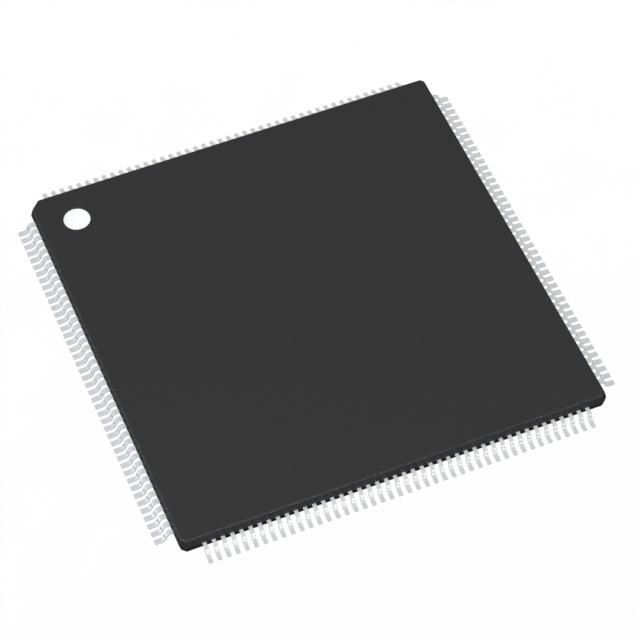

STM32H735ZGT6 devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 550 MHz. The Cortex® -M7 core features a floating-point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. The Cortex -M7 core includes 32 Kbytes of instruction cache and 32 Kbytes of data cache. STM32H735ZGT6 devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

Specifications Of STM32H735ZGT6

Core Processor：ARM® Cortex®-M7

Core Size：32-Bit

Speed：550MHz

Connectivity：CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG

Peripherals：Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT

Number of I/O：97

Program Memory Size：1MB (1M x 8)

Program Memory Type：FLASH

RAM Size：564K x 8

Voltage - Supply (Vcc/Vdd)：1.62V ~ 3.6V

Data Converters：A/D 12x12/b, 22x16b; D/A 2x12b

Oscillator Type：Internal

Operating Temperature：-40°C ~ 85°C (TA)

Applications Of STM32H735ZGT6

Motor drive and application control

Medical equipment

Industrial applications: PLC, inverters, circuit breakers

Printers, and scanners

Alarm systems, video intercom, and HVAC

Home audio appliances

Mobile applications, Internet of Things

Wearable devices: smart watches.
