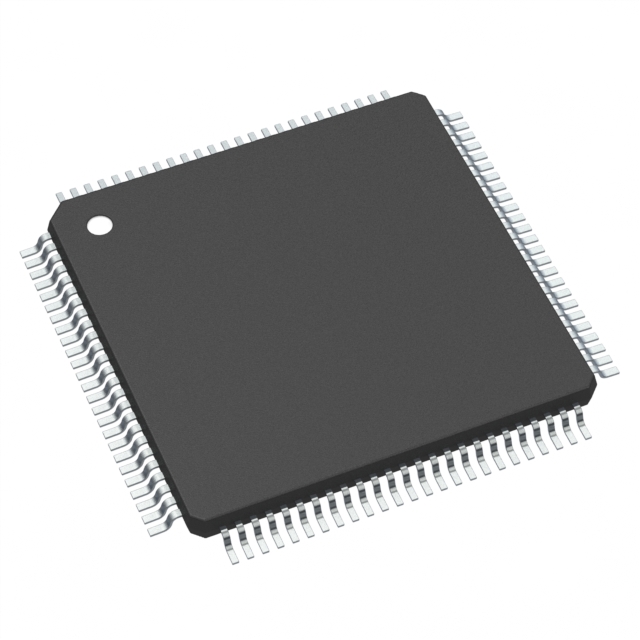

The ultra-low-power STM32L152VET6 devices incorporate the connectivity power of the universal serial bus (USB) with the high-performance Arm® Cortex®-M3 32-bit RISC core operating at a frequency of 32 MHz (33.3 DMIPS), a memory protection unit (MPU), high-speed embedded memories (Flash memory up to 512 Kbytes and RAM up to 80 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

The STM32L152VET6 devices offer two operational amplifiers, one 12-bit ADC, two DACs, two ultra-low-power comparators, one general-purpose 32-bit timer, six general-purpose 16-bit timers and two basic timers, which can be used as time bases.

Specifications Of STM32L152VET6

Core: ARM Cortex M3

Program Memory Size: 512 kB

Data Bus Width: 32 bit

ADC Resolution: 12 bit

Maximum Clock Frequency: 32 MHz

Number of I/Os: 83 I/O

Data RAM Size: 80 kB

Supply Voltage - Min: 1.65 V

Supply Voltage - Max: 3.6 V

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

Analogue Supply Voltage: 1.65 V to 3.6 V

DAC Resolution: 12 bit

Data RAM Type: SRAM

Data ROM Size: 16 kB

Data ROM Type: EEPROM

I/O Voltage: 1.65 V to 3.6 V

Interface Type: I2C, SPI, USART, USB

Moisture Sensitive: Yes

Number of ADC Channels: 25 Channel

Unit Weight: 1.319 g

Applications Of STM32L152VET6

Medical and handheld equipment

Application control and user interface

PC peripherals, gaming, GPS and sport equipment

Alarm systems, wired and wireless sensors, video intercom

Utility metering
