The STM32N647L0H3Q is a high-performance microcontroller launched by (ST), featuring enhanced edge AI capabilities and expanding the STM32 high-performance product portfolio. This device is based on an Arm® Cortex® -M55 processor with an operating frequency of 800 MHz. The Cortex® M55 is the first CPU to introduce Arm® Helium vector processing technology, adding DSP processing capabilities to standard cpus.

In addition, the STM32N647L0H3Q is equipped with ST NeurART Accelerator™, an internal NPU specifically designed for energy-efficient edge AI applications, featuring a 1GHz clock frequency and up to 600GOPS computing performance.

Performance parameters

Core processor: ARM® Cortex®-M55F

Kernel specification: 32-bit

Speed: 800MHz

Connection capabilities: CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB

Peripherals: AES, power-off detection/reset, DMA, I2S, LCD, POR, PWM, TRNG, WDT

I/O number: 144

Program storage capacity: -

Program memory type: ROMless

EEPROM capacity: -

RAM size: 4.2M x 8

Voltage - Power supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 20x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

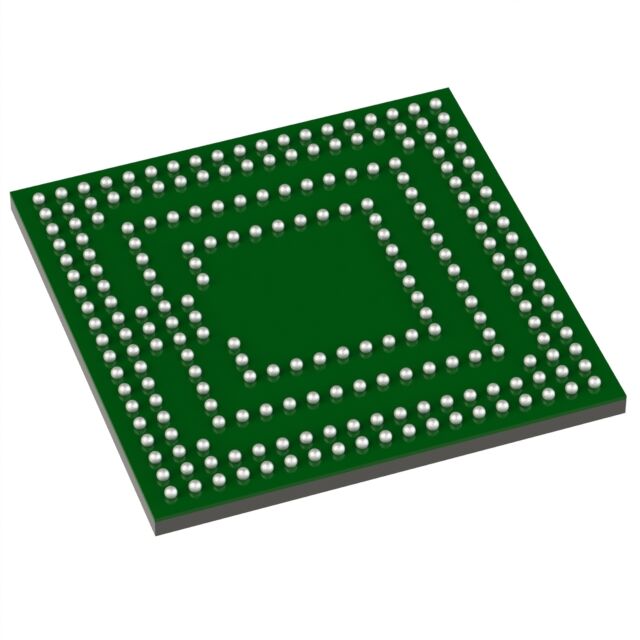

Packaging: 223-VFBGA

Target application

Industrial robotic arm

Screen

Illustration of Smart City

Automobile

Interconnection glasses
